Texas Instruments
ALM2402QPWPRQ1
ALM2402QPWPRQ1
Regular price
$0.76 USD
Regular price
Sale price
$0.76 USD
Unit price
per
Couldn't load pickup availability
ALM2402QPWPRQ1 Texas Instruments - Yeehing Electronics
Dual operational amplifier with high current output
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.137 |
| 100 — 249 | 1.765 |
| 250 — 999 | 1.268 |
| 1,000 + | 0.76 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Precision Amplifiers |
| RoHS | Y |
| Series | ALM2402-Q1 |
| Number of Channels | 2 Channel |
| GBP - Gain Bandwidth Product | 600 kHz |
| SR - Slew Rate | 0.17 V/us |
| CMRR - Common Mode Rejection Ratio | 45 dB to 90 dB |
| Output Current per Channel | 400 mA |
| Ib - Input Bias Current | 100 nA |
| Vos - Input Offset Voltage | 15 mV |
| en - Input Voltage Noise Density | 110 nV/sqrt Hz |
| Supply Voltage - Max | 16 V |
| Supply Voltage - Min | 4.5 V |
| Operating Supply Current | 5 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Shutdown | Shutdown |
| Mounting Style | SMD/SMT |

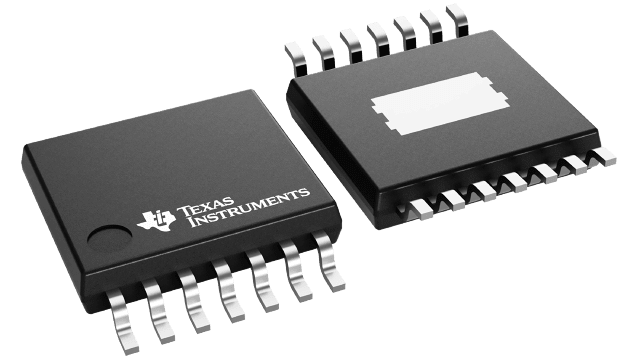

| Package / Case | HTSSOP-14 |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Amplifier Type | Precision Amplifier |
| Features | Shutdown, EMI Hardened, High Cload Drive |
| Output Type | Rail to Rail |
| Product | Precision Amplifiers |
| Brand | Texas Instruments |
| THD plus Noise | - 80 dB |
| Ios - Input Offset Current | 30 nA |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 4.5 V to 16 V |
| Product Type | Precision Amplifiers |
| PSRR - Power Supply Rejection Ratio | 90 dB |
| Factory Pack Quantity | 2000 |
| Subcategory | Amplifier ICs |
| Unit Weight | 0.002046 oz |
For more information, please refer to datasheet
Documents
| ALM2402QPWPRQ1 Datasheet |
More Information
The ALM2402-Q1 is a dual high voltage, high current op-amp with protection features that are optimal for driving low impedances and/or high ESR capacitive loads. ALM2402-Q1 operates with single or split power supplies from 5.0 V to 16 V and can output up to 400 mA DC.
