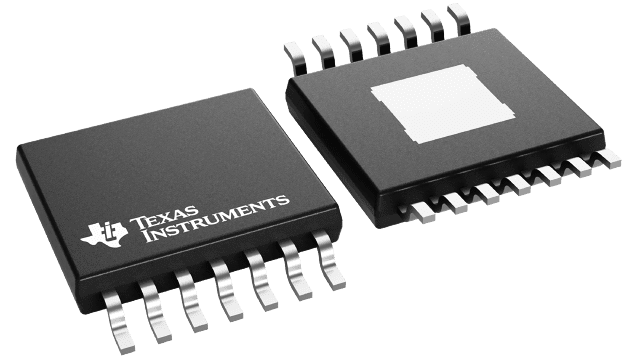

ALM2403QPWPRQ1 Texas Instruments - Yeehing Electronics
Automotive, dual-channel, high-voltage, power op amp with low distortion for resolver applications
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 3.379 |
100 — 249 | 2.961 |
250 — 999 | 2.076 |
1,000 + | 1.17 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
ALM2403QPWPRQ1 Datasheet |
More Information
The ALM2403-Q1 is a dual-power op amp with features and performance that make this device preferable for resolver-based applications. The high-gain bandwidth and slew rate of the device, along with a continuous high-output current-drive capability, make this device an excellent choice to provide the low distortion and differential high-amplitude excitation required for exciting the resolver primary coil. Current limiting and overtemperature detection enhance overall system robustness, especially when driving analog signals over wires that are susceptible to faults.
