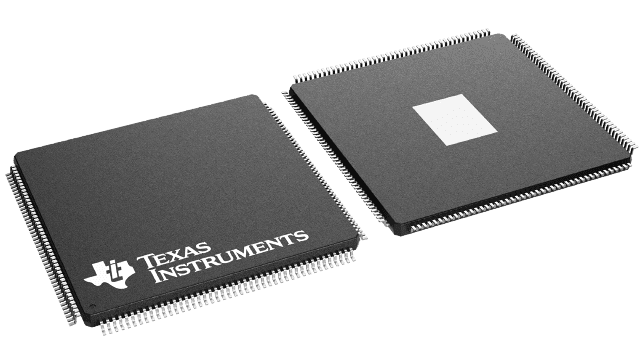

AM1705DPTPA3 Texas Instruments - Yeehing Electronics
Sitara processor: Arm9, SDRAM, Ethernet
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 12.769 |
| 100 — 249 | 11.153 |
| 250 — 999 | 8.6 |
| 1,000 + | 5.38 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Microprocessors - MPU |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | HLQFP-176 |
| Series | AM1705 |
| Core | ARM926EJ-S |
| Number of Cores | 1 Core |
| Data Bus Width | 32 bit/16 bit |
| Maximum Clock Frequency | 375 MHz |
| L1 Cache Instruction Memory | 16 kB |
| L1 Cache Data Memory | 16 kB |
| Operating Supply Voltage | 1.2 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Packaging | Tray |
| Memory Type | L1 Cache, RAM, ROM |
| Brand | Texas Instruments |
| Data RAM Size | 8 kB, 128 kB |
| Data ROM Size | 64 kB |
| Interface Type | Ethernet, I2C, SPI, UART, USB |
| Development Kit | TMDXEVM1707 |
| I/O Voltage | 1.8 V, 3.3 V |
| Moisture Sensitive | Yes |
| Number of Timers/Counters | 2 x 32 bit |
| Processor Series | Sitara |
| Factory Pack Quantity | 40 |
| Tradename | Sitara |
| Watchdog Timers | Watchdog Timer |
| Unit Weight | 0.065299 oz |
For more information, please refer to datasheet
Documents
| AM1705DPTPA3 Datasheet |
More Information
The AM1705 is a low-power ARM microprocessor based on an ARM926EJ-S.
