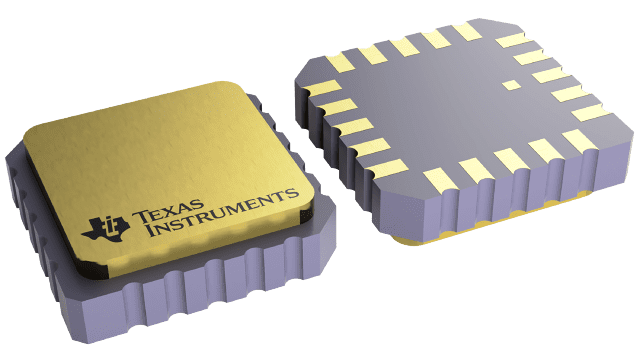

AM26LS31MFKB


YeeHing #: Y007-AM26LS31MFKB
Inventory: 2800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

AM26LS31MFKB Texas Instruments - Yeehing Electronics

Quadruple Differential Line Driver

Pricing (USD)

Quantity Unit Price
1 — 99 64.587
100 — 249 57.411
250 — 999 47.195
1,000 + 33.77

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Minimum Operating Temperature -55
Maximum Operating Temperature 125
Factory Pack Quantity 1
Package | Pins LCCC (FK) | 20

For more information, please refer to datasheet

Documents

AM26LS31MFKB Datasheet

More Information

The AM26LS31 family of devices is a quadruple complementary-output line driver designed to meet the requirements of ANSI TIA/EIA-422-B and ITU (formerly CCITT) Recommendation V.11. The 3-state outputs have high-current capability for driving balanced lines such as twisted-pair or parallel-wire transmission lines, and they are in the high-impedance state in the power-off condition. The enable function is common to all four drivers and offers the choice of an active-high or active-low enable (G, G) input. Low-power Schottky circuitry reduces power consumption without sacrificing speed.
