Description

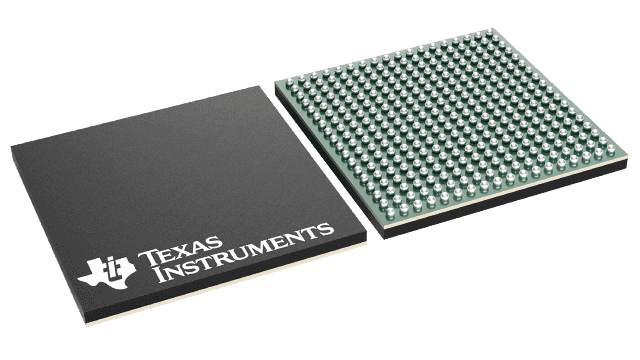

AM3354BZCZA80 Texas Instruments - Yeehing Electronics
Sitara processor: Arm Cortex-A8, 3D graphics, CAN
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 17.135 |
| 100 — 249 | 14.967 |
| 250 — 999 | 11.54 |
| 1,000 + | 7.23 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Microprocessors - MPU |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | PBGA-324 |
| Series | AM3354 |
| Core | ARM Cortex A8 |
| Number of Cores | 1 Core |
| Data Bus Width | 32 bit |
| Maximum Clock Frequency | 800 MHz |
| L1 Cache Instruction Memory | 32 kB |
| L1 Cache Data Memory | 32 kB |
| Operating Supply Voltage | 1.1 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Packaging | Tray |
| Memory Type | L1/L2/L3 Cache, RAM, ROM |
| Brand | Texas Instruments |
| Data RAM Size | 64 kB, 64 kB |
| Data ROM Size | 176 kB |
| Interface Type | CAN, Ethernet, I2C, SPI, UART, USB |
| Development Kit | TMDXEVM3358 |
| I/O Voltage | 1.8 V, 3.3 V |
| L2 Cache Instruction / Data Memory | 256 kB |
| Moisture Sensitive | Yes |
| Number of Timers/Counters | 8 x 32 bit |
| Processor Series | Sitara |
| Factory Pack Quantity | 126 |
| Tradename | Sitara |
| Watchdog Timers | Watchdog Timer |
| Unit Weight | 0.060453 oz |
For more information, please refer to datasheet
Documents
| AM3354BZCZA80 Datasheet |
More Information
The AM335x microprocessors, based on the ARM Cortex-A8 processor, are enhanced with image, graphics processing, peripherals and industrial interface options such as EtherCAT and PROFIBUS. The devices support high-level operating systems (HLOS). Processor SDK Linux® and TI-RTOS are available free of charge from TI.
