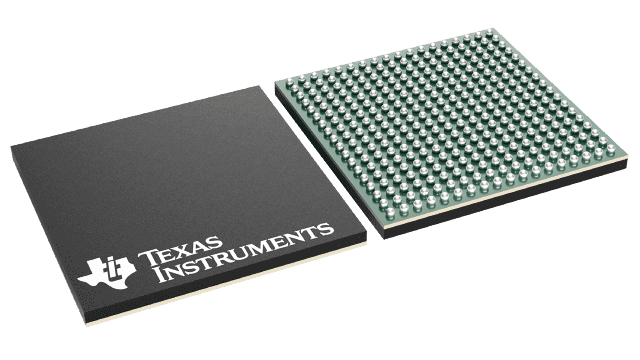

AM3357BZCZD60 Texas Instruments - Yeehing Electronics

Sitara processor: Arm Cortex-A8, EtherCAT, PRU-ICSS, CAN

Pricing (USD)

Quantity	Unit Price
1 — 99	16.092
100 — 249	14.056
250 — 999	10.838
1,000 +	7.76

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Microprocessors - MPU
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	PBGA-324
Series	AM3357
Core	ARM Cortex A8
Number of Cores	1 Core
Data Bus Width	32 bit
Maximum Clock Frequency	600 MHz
L1 Cache Instruction Memory	32 kB
L1 Cache Data Memory	32 kB
Operating Supply Voltage	1.1 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Memory Type	L1/L2/L3 Cache, RAM, ROM
Brand	Texas Instruments
Data RAM Size	64 kB, 64 kB
Data ROM Size	176 kB
Interface Type	CAN, Ethernet, I2C, SPI, UART, USB
I/O Voltage	1.8 V, 3.3 V
L2 Cache Instruction / Data Memory	256 kB
Moisture Sensitive	Yes
Number of Timers/Counters	8 x 32 bit
Processor Series	Sitara
Factory Pack Quantity	126
Tradename	Sitara
Watchdog Timers	Watchdog Timer
Unit Weight	0.060453 oz

For more information, please refer to datasheet

Documents

AM3357BZCZD60 Datasheet

More Information

The AM335x microprocessors, based on the ARM Cortex-A8 processor, are enhanced with image, graphics processing, peripherals and industrial interface options such as EtherCAT and PROFIBUS. The devices support high-level operating systems (HLOS). Processor SDK Linux® and TI-RTOS are available free of charge from TI.
