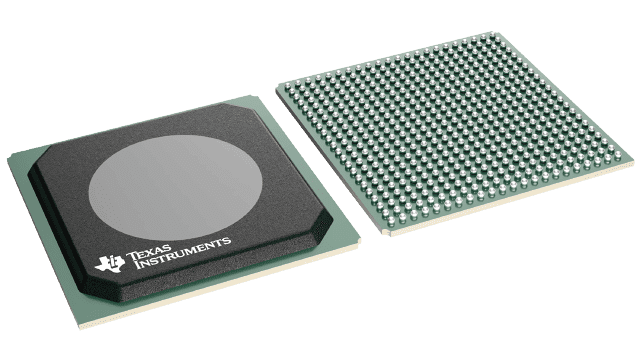

AM3517AZERC


YeeHing #: Y010-AM3517AZERC
Inventory: 2200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

AM3517AZERC Texas Instruments - Yeehing Electronics

Sitara processor: Arm Cortex-A8, 3D graphics, video front end

Pricing (USD)

Quantity Unit Price
1 — 99 23.499
100 — 249 20.888
250 — 999 17.171
1,000 + 10.75

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Microprocessors - MPU
RoHS Y
Mounting Style SMD/SMT
Package / Case PBGA-484
Series AM3517
Core ARM Cortex A8
Number of Cores 1 Core
Data Bus Width 32 bit
Maximum Clock Frequency 600 MHz
L1 Cache Instruction Memory 16 kB
L1 Cache Data Memory 16 kB
Operating Supply Voltage 1.2 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 105 C
Packaging Tray
Memory Type L1/L2 Cache, RAM, ROM
Brand Texas Instruments
Data RAM Size 64 kB
Data ROM Size 132 kB
Interface Type I2C, USB
Number of I/Os 186 I/O
I/O Voltage 1.8 V, 3.3 V
Instruction Type Floating Point
L2 Cache Instruction / Data Memory 256 kB
Moisture Sensitive Yes
Number of Timers/Counters 12 x 32 bit
Processor Series Sitara
Factory Pack Quantity 60
Tradename Sitara
Watchdog Timers Watchdog Timer
Unit Weight 0.061821 oz

For more information, please refer to datasheet

Documents

AM3517AZERC Datasheet

More Information

AM3517/05 is a high-performance ARM Cortex-A8 microprocessor with speeds up to 600 MHz. The device offers 3D graphics acceleration while also supporting numerous peripherals, including DDR2, CAN, EMAC, and USB OTG PHY that are well suited for industrial apllications.
