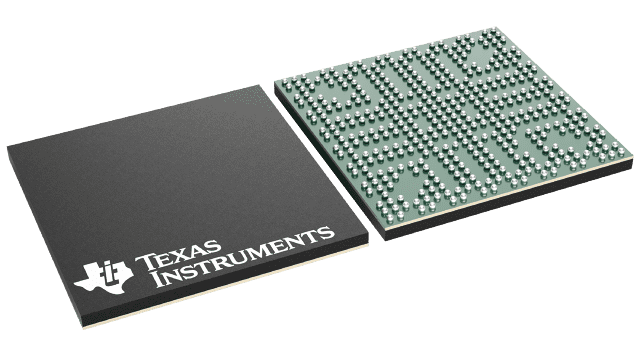

AM3703CUS Texas Instruments - Yeehing Electronics
Sitara processor: Arm Cortex-A8, camera
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 22.825 |
| 100 — 249 | 19.938 |
| 250 — 999 | 15.373 |
| 1,000 + | 9.62 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Microprocessors - MPU |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | PBGA-423 |
| Series | AM3703 |
| Core | ARM Cortex A8 |
| Number of Cores | 1 Core |
| Data Bus Width | 32 bit |
| Maximum Clock Frequency | 800 MHz |
| L1 Cache Instruction Memory | 32 kB |
| L1 Cache Data Memory | 32 kB |
| Operating Supply Voltage | 900 mV to 1.2 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Packaging | Tray |
| Memory Type | L1/L2 Cache, RAM, ROM |
| Brand | Texas Instruments |
| Data RAM Size | 64 kB |
| Data ROM Size | 32 kB |
| Interface Type | I2C, SPI, UART, USB |
| Number of I/Os | 188 I/O |
| Development Kit | TMDXEVM3715 |
| I/O Voltage | 1.8 V, 3.3 V |
| Instruction Type | Floating Point |
| L2 Cache Instruction / Data Memory | 256 kB |
| Moisture Sensitive | Yes |
| Number of Timers/Counters | 12 x 32 bit |
| Processor Series | Sitara |
| Factory Pack Quantity | 90 |
| Tradename | Sitara |
| Watchdog Timers | Watchdog Timer |
| Part # Aliases | AM3703CUSNEST |
| Unit Weight | 0.015739 oz |
For more information, please refer to datasheet
Documents
| AM3703CUS Datasheet |
More Information
The AM37x generation (AM3715/AM3703) of Sitara™ high-performance microprocessors is based on the enhanced Cortex™-A8 device architecture and is integrated on TI's advanced 45-nm process technology. This architecture is designed to provide best in class ARM and graphics performance while delivering low power consumption.
