AM3715CUS


YeeHing #: Y010-AM3715CUS
Inventory: 8600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

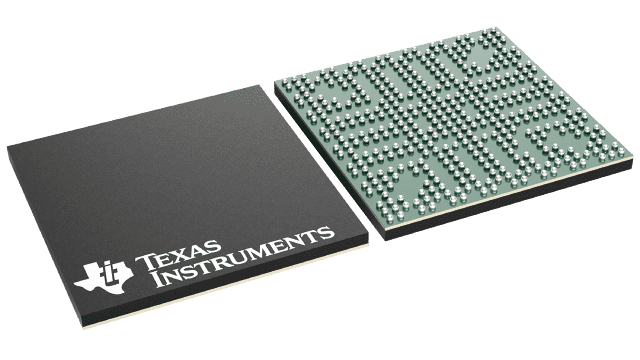

AM3715CUS Texas Instruments - Yeehing Electronics

Sitara processor: Arm Cortex-A8, 3D graphics, camera

Pricing (USD)

Quantity Unit Price
1 — 99 30.744
100 — 249 27.328
250 — 999 22.465
1,000 + 14.07

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Microprocessors - MPU
RoHS Y
Mounting Style SMD/SMT
Package / Case PBGA-423
Series AM3715
Core ARM Cortex A8
Number of Cores 1 Core
Data Bus Width 32 bit
Maximum Clock Frequency 800 MHz
L1 Cache Instruction Memory 32 kB
L1 Cache Data Memory 32 kB
Operating Supply Voltage 900 mV to 1.2 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 105 C
Packaging Tray
Memory Type L1/L2 Cache, RAM, ROM
Brand Texas Instruments
Data RAM Size 64 kB
Data ROM Size 32 kB
Interface Type I2C, SPI, UART, USB
Number of I/Os 188 I/O
I/O Voltage 1.8 V, 3.3 V
Instruction Type Floating Point
L2 Cache Instruction / Data Memory 256 kB
Moisture Sensitive Yes
Number of Timers/Counters 12 x 32 bit
Processor Series Sitara
Factory Pack Quantity 90
Tradename Sitara
Watchdog Timers Watchdog Timer
Unit Weight 0.015739 oz

For more information, please refer to datasheet

Documents

AM3715CUS Datasheet

More Information

The AM37x generation (AM3715/AM3703) of Sitara™ high-performance microprocessors is based on the enhanced Cortex™-A8 device architecture and is integrated on TI's advanced 45-nm process technology. This architecture is designed to provide best in class ARM and graphics performance while delivering low power consumption.
