AM3894CCYG120 Texas Instruments - Yeehing Electronics

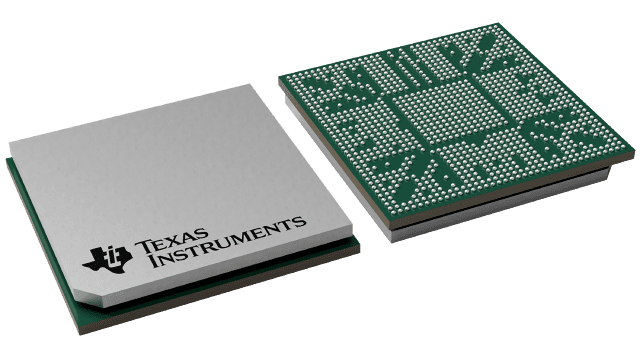

Sitara processor: Arm Cortex-A8, 3D graphics, HDMI
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 72.086 |
| 100 — 249 | 64.076 |
| 250 — 999 | 52.675 |
| 1,000 + | 32.98 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Microprocessors - MPU |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | PBGA-1031 |
| Series | AM3894 |
| Core | ARM Cortex A8 |
| Number of Cores | 1 Core |
| Data Bus Width | 32 bit |
| Maximum Clock Frequency | 1.1 GHz |
| L1 Cache Instruction Memory | 32 kB |
| L1 Cache Data Memory | 32 kB |
| Operating Supply Voltage | 850 mV to 1.1 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Packaging | Tray |
| Memory Type | L1/L2 Cache, RAM, ROM |
| Brand | Texas Instruments |
| Data RAM Size | 64 kB |
| Data ROM Size | 48 kB |
| Interface Type | Ethernet, I2C, SPI, PCIe, UART, USB |
| Number of I/Os | 64 I/O |
| Development Kit | TMDXEVM8168C |
| I/O Voltage | 1.5 V, 1.8 V, 3.3 V |
| Instruction Type | Floating Point |
| L2 Cache Instruction / Data Memory | 256 kB |
| Moisture Sensitive | Yes |
| Number of Timers/Counters | 7 x 32 bit |
| Processor Series | Sitara |
| Factory Pack Quantity | 44 |
| Tradename | Sitara |
| Watchdog Timers | Watchdog Timer |
| Unit Weight | 0.264749 oz |
For more information, please refer to datasheet
Documents
| AM3894CCYG120 Datasheet |
More Information
The AM389x Sitara ARM processors are a highly integrated, programmable platform that leverages TI's Sitara technology to meet the processing needs of the following applications: single-board computing, network and communications processing, industrial automation, human machine interface, and interactive point-of-service kiosks.
