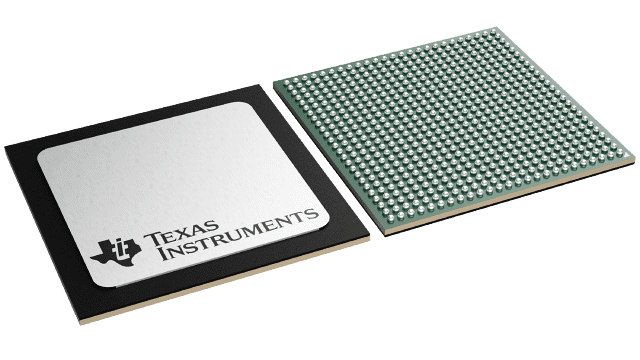

AM5706BCBDD Texas Instruments - Yeehing Electronics
Sitara processor: cost optimized Arm Cortex-A15 & DSP and secure boot
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 36.475 |
| 100 — 249 | 32.422 |
| 250 — 999 | 26.653 |
| 1,000 + | 16.69 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Microprocessors - MPU |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | FCBGA-538 |
| Series | AM5706 |
| Core | ARM Cortex A15, ARM Cortex M4, C66x |
| Number of Cores | 4 Core |
| Data Bus Width | 32 bit |
| Maximum Clock Frequency | 500 MHz |
| L1 Cache Instruction Memory | 32 kB, 32 kB |
| L1 Cache Data Memory | 32 kB, 32 kB |
| Operating Supply Voltage | 1.15 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Packaging | Tray |
| Memory Type | L1/L2/L3 Cache, RAM |
| Brand | Texas Instruments |
| Data RAM Size | 512 kB |
| Interface Type | CAN, I2C, SPI, UART, USB |
| Number of I/Os | 186 I/O |
| I/O Voltage | 1.8 V, 3.3 V |
| Instruction Type | Fixed/Floating Point |
| L2 Cache Instruction / Data Memory | 1 MB, 288 kB |
| Moisture Sensitive | Yes |
| Number of Timers/Counters | 16 Timer |
| Product Type | Microprocessors - MPU |
| Factory Pack Quantity | 90 |
| Subcategory | Microprocessors - MPU |
| Tradename | Sitara |
| Watchdog Timers | Watchdog Timer |
For more information, please refer to datasheet
Documents
| AM5706BCBDD Datasheet |
More Information
AM570x Sitara™ processors are Arm applications processors built to meet the intense processing needs of modern embedded products.
