Texas Instruments
AM5716AABCXEA
AM5716AABCXEA
Regular price
$20.37 USD
Regular price
Sale price
$20.37 USD
Unit price
per
Couldn't load pickup availability

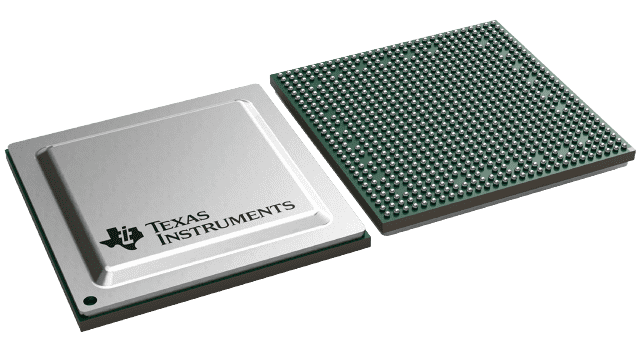

AM5716AABCXEA Texas Instruments - Yeehing Electronics
Sitara processor: Arm Cortex-A15 & DSP
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 44.523 |
| 100 — 249 | 39.576 |
| 250 — 999 | 32.534 |
| 1,000 + | 20.37 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Microprocessors - MPU |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | FCBGA-760 |
| Series | AM5716 |
| Core | ARM Cortex A15, ARM Cortex M4, C66x |
| Number of Cores | 4 Core |
| Data Bus Width | 32 bit |
| Maximum Clock Frequency | 1.5 GHz, 750 MHz, 212.8 MHz |
| L1 Cache Instruction Memory | 32 kB, 32 kB |
| L1 Cache Data Memory | 32 kB, 32 kB |
| Operating Supply Voltage | 1.15 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Tray |
| Memory Type | L1/L2/L3 Cache, RAM |
| Brand | Texas Instruments |
| Data RAM Size | 512 kB |
| Interface Type | CAN, Ethernet, I2C, PCIe, SPI, UART, USB |
| Number of I/Os | 215 I/O |
| I/O Voltage | 1.8 V, 3.3 V |
| Instruction Type | Fixed/Floating Point |
| L2 Cache Instruction / Data Memory | 1 MB, 288 kB |
| Moisture Sensitive | Yes |
| Number of Timers/Counters | 16 x 32 bit |
| Processor Series | Sitara |
| Factory Pack Quantity | 60 |
| Tradename | Sitara |
| Watchdog Timers | Watchdog Timer |
| Unit Weight | 0.149579 oz |
For more information, please refer to datasheet
Documents
| AM5716AABCXEA Datasheet |
More Information
AM571x Sitara™ processors are Arm® applications processors built to meet the intense processing needs of modern embedded products.
