Description

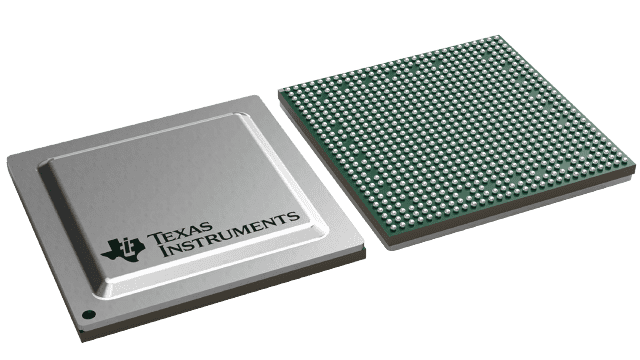

AM5726BABCXEA Texas Instruments - Yeehing Electronics
Sitara processor: dual Arm Cortex-A15 & dual DSP
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 68.221 |
| 100 — 249 | 66.169 |
| 250 — 999 | 55.09 |
| 1,000 + | 35.91 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Microprocessors - MPU |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | FCBGA-760 |
| Series | AM5726 |
| Core | ARM Cortex-A15 |
| Number of Cores | 2 Core |
| Data Bus Width | 16 bit |
| Maximum Clock Frequency | 1500 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Packaging | Tray |
| Memory Type | L3 |
| Brand | Texas Instruments |
| Data RAM Size | 2.5 MB |
| Interface Type | CAN, I2C, SPI, UART, USB |
| Number of I/Os | 247 I/O |
| Instruction Type | Fixed/Floating Point |
| Moisture Sensitive | Yes |
| Number of Timers/Counters | 16 |
| Factory Pack Quantity | 60 |
| Tradename | Sitara |
| Watchdog Timers | Watchdog Timer |
| Unit Weight | 0.152465 oz |
For more information, please refer to datasheet
Documents
| AM5726BABCXEA Datasheet |
More Information
AM572x Sitara™ processors are Arm applications processors built to meet the intense processing needs of modern embedded products.
