Texas Instruments
AM5K2E04XABDA4
AM5K2E04XABDA4
Regular price
$95.08 USD
Regular price
Sale price
$95.08 USD
Unit price
per
Couldn't load pickup availability

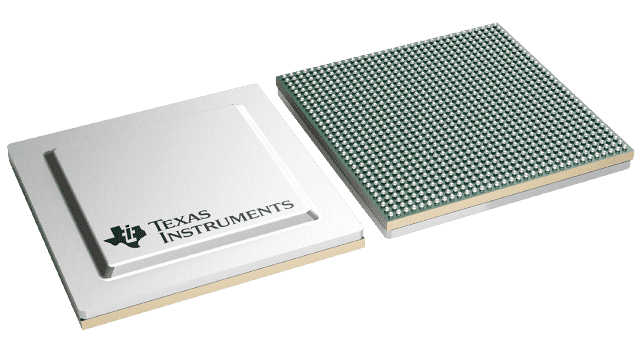

AM5K2E04XABDA4 Texas Instruments - Yeehing Electronics
Sitara processor: quad-Arm Cortex-A15
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 157.56 |
| 100 — 249 | 142.619 |
| 250 — 999 | 138.545 |
| 1,000 + | 95.08 |
The above prices are for reference only.
Specifications
| Manufacturer | NXP |
| Product Category | Microprocessors - MPU |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | TBGA-740 |
| Series | MPC8360E |
| Core | e300 |
| Number of Cores | 1 Core |
| Data Bus Width | 32 bit |
| Maximum Clock Frequency | 667 MHz |
| L1 Cache Instruction Memory | 32 kB |
| L1 Cache Data Memory | 32 kB |
| Operating Supply Voltage | 1.3 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 105 C |
| Packaging | Tray |
| Memory Type | L1 Cache |
| Brand | NXP / Freescale |
| Interface Type | Ethernet, I2C, PCIe, SPI, UART, USB |
| I/O Voltage | 1.8 V, 2.5 V, 3.3 V |
| Instruction Type | Floating Point |
| Moisture Sensitive | Yes |
| Number of Timers/Counters | 4 x 32 bit |
| Processor Series | PowerQUICC II Pro |
| Factory Pack Quantity | 21 |
| Tradename | PowerQUICC |
| Watchdog Timers | Watchdog Timer |
| Part # Aliases | 935324101557 |
| Unit Weight | 0.380828 oz |
For more information, please refer to datasheet
Documents
| AM5K2E04XABDA4 Datasheet |
More Information
The AM5K2E0x is a high performance device based on TIs KeyStone II Multicore SoC Architecture, incorporating the most performance-optimized Cortex-A15 processor dual-core or quad-core CorePac that can run at a core speed of up to 1.4 GHz. TIs AM5K2E0x device enables a high performance, power-efficient and easy to use platform for developers of a broad range of applications such as enterprise grade networking end equipment, data center networking, avionics and defense, medical imaging, test and automation.
