Texas Instruments
AMC1100DUBR
AMC1100DUBR
Regular price
$1.32 USD
Regular price
Sale price
$1.32 USD
Unit price
per
Couldn't load pickup availability

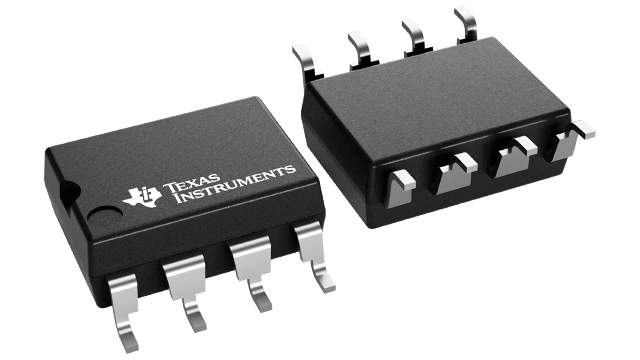

AMC1100DUBR Texas Instruments - Yeehing Electronics
±250-mV input, precision current sensing low-cost basic isolated amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.333 |
| 100 — 249 | 2.921 |
| 250 — 999 | 2.048 |
| 1,000 + | 1.32 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Isolation Amplifiers |
| RoHS | Y |
| Series | AMC1100 |
| GBP - Gain Bandwidth Product | - |
| 3 dB Bandwidth | 100 kHz |
| CMRR - Common Mode Rejection Ratio | 108 dB |
| Vos - Input Offset Voltage | 1.5 mV |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.7 V, 4.5 V |
| Operating Supply Current | 8 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Mounting Style | SMD/SMT |
| Package / Case | SOP-8 |
| Packaging | Reel |
| Amplifier Type | Isolation |
| Product | Isolation Amplifiers |
| Brand | Texas Instruments |
| Development Kit | AMC1100EVM |
| Gain Error | 0.075 % |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3.3 V |
| Product Type | Isolation Amplifiers |
| Factory Pack Quantity | 350 |
| Subcategory | Amplifier ICs |
| Unit Weight | 0.030018 oz |
For more information, please refer to datasheet
Documents
| AMC1100DUBR Datasheet |
More Information
The AMC1100 is a precision isolation amplifier with an output separated from the input circuitry by a silicon dioxide (SiO2) barrier that is highly resistant to magnetic interference. This barrier is certified to provide galvanic isolation of up to 4250 VPEAK, according to DIN VDE V 0884-11: 2017-01 and UL1577. Used in conjunction with isolated power supplies, this device prevents noise currents on a high common-mode voltage line from entering the local ground and interfering with or damaging sensitive circuitry.
