Texas Instruments
AMC1106E05DWVR
AMC1106E05DWVR
Regular price
$1.33 USD
Regular price
Sale price
$1.33 USD
Unit price
per
Couldn't load pickup availability

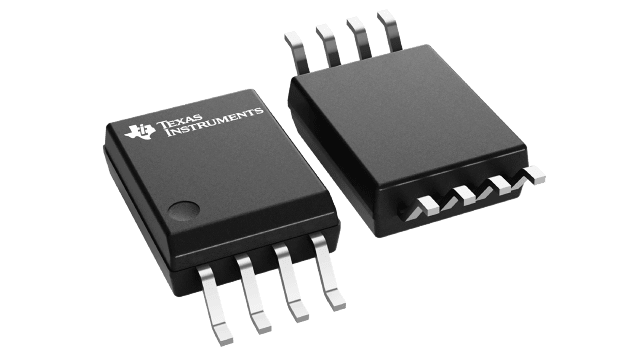

AMC1106E05DWVR Texas Instruments - Yeehing Electronics
±50-mV input, precision current sensing basic isolated modulator with Manchester code
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.838 |
| 100 — 249 | 3.363 |
| 250 — 999 | 2.358 |
| 1,000 + | 1.33 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Data Acquisition ADCs/DACs - Specialized |
| RoHS | Y |
| Series | AMC1106E05 |
| Product | Isolated Analog to Digital Converters |
| Type | Isolated Precision ADC |
| Resolution | 16 bit |
| Number of Channels | 1 Channel |
| Operating Supply Voltage | 3.3 V, 5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | SOIC-8 |
| Packaging | Reel |
| Number of Converters | 1 Converter |
| Power Consumption | 45 mW |
| Sampling Rate | 21 MS/s |
| Architecture | Sigma-Delta |
| Brand | Texas Instruments |
| Interface Type | Serial |
| Shutdown | No Shutdown |
| Digital Supply Voltage | 2.7 V to 5.5 V |
| DNL - Differential Nonlinearity | 0.99 LSB |
| Gain Error | 0.005 % |
| INL - Integral Nonlinearity | 4 LSB |
| Moisture Sensitive | Yes |
| Product Type | Data Acquisition ADCs/DACs - Specialized |
| SFDR - Spurious Free Dynamic Range | 83 dB |
| SINAD - Signal to Noise and Distortion Ratio | 82.3 dB |
| SNR - Signal to Noise Ratio | 82.5 dB |
| Factory Pack Quantity | 1000 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.011175 oz |
For more information, please refer to datasheet
Documents
| AMC1106E05DWVR Datasheet |
More Information
The AMC1106 is a precision, delta-sigma (ΔΣ) modulator with the output separated from the input circuitry by a capacitive isolation barrier that is highly resistant to magnetic interference.
