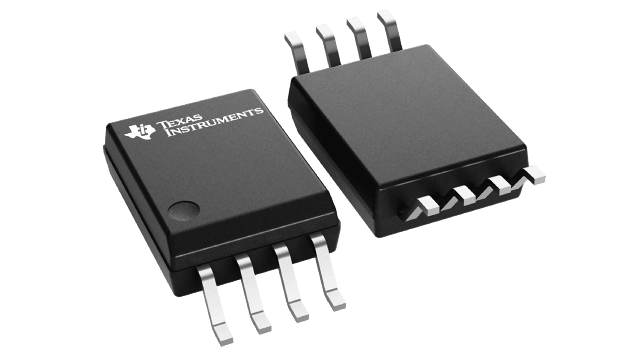

AMC1106M05DWVR


YeeHing #: Y008-AMC1106M05DWVR
Inventory: 7000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

AMC1106M05DWVR Texas Instruments - Yeehing Electronics

±50-mV input, precision current sensing basic isolated modulator

Pricing (USD)

Quantity Unit Price
1 — 99 3.838
100 — 249 3.363
250 — 999 2.358
1,000 + 1.33

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Data Acquisition ADCs/DACs - Specialized
RoHS Y
Series AMC1106E05
Product Isolated Analog to Digital Converters
Type Isolated Precision ADC
Resolution 16 bit
Number of Channels 1 Channel
Operating Supply Voltage 2.7 V to 5.5 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Mounting Style SMD/SMT
Package / Case SOIC-8
Packaging Reel
Number of Converters 1 Converter
Power Consumption 45 mW
Sampling Rate 21 MS/s
Architecture Sigma-Delta
Brand Texas Instruments
Interface Type Serial
Shutdown No Shutdown
Digital Supply Voltage 2.7 V to 5.5 V
DNL - Differential Nonlinearity 0.99 LSB
Gain Error 0.005 %
INL - Integral Nonlinearity 4 LSB
Moisture Sensitive Yes
Product Type Data Acquisition ADCs/DACs - Specialized
SFDR - Spurious Free Dynamic Range 83 dB
SINAD - Signal to Noise and Distortion Ratio 82.3 dB
SNR - Signal to Noise Ratio 82.5 dB
Factory Pack Quantity 1000
Subcategory Data Converter ICs
Unit Weight 0.011175 oz

For more information, please refer to datasheet

Documents

AMC1106M05DWVR Datasheet

More Information

The AMC1106 is a precision, delta-sigma (ΔΣ) modulator with the output separated from the input circuitry by a capacitive isolation barrier that is highly resistant to magnetic interference.
