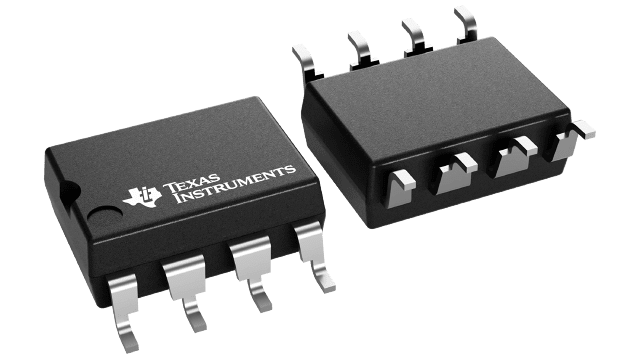

AMC1200SDUB Texas Instruments - Yeehing Electronics

±250-mV input, precision current sensing basic isolated amplifier

Pricing (USD)

Quantity	Unit Price
1 — 99	3.864
100 — 249	3.15
250 — 999	2.476
1,000 +	1.47

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Isolation Amplifiers
RoHS	Y
Series	AMC1200
Number of Channels	1 Channel
Isolation Voltage	4000 Vrms
Isolation Type	Galvanic
GBP - Gain Bandwidth Product	-
3 dB Bandwidth	100 kHz
CMRR - Common Mode Rejection Ratio	108 dB
Vos - Input Offset Voltage	200 uV
Supply Voltage - Max	5.5 V
Supply Voltage - Min	2.7 V, 4.5 V
Operating Supply Current	5.4 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Mounting Style	SMD/SMT
Package / Case	SOP-8
Packaging	Bulk
Amplifier Type	Isolation
Output Type	Differential
Product	Isolation Amplifiers
Brand	Texas Instruments
Input Voltage Range - Max	+/- 320 mV
Shutdown	No Shutdown
Development Kit	AMC1200EVM
Gain Error	0.075 %
Gain V/V	8 V/V
Moisture Sensitive	Yes
Operating Supply Voltage	2.7 V to 5.5 V
Output Current per Channel	20 mA
Pd - Power Dissipation	44 mW
Product Type	Isolation Amplifiers
PSRR - Power Supply Rejection Ratio	61 dB
SR - Slew Rate	-
Factory Pack Quantity	50
Subcategory	Amplifier ICs
Unit Weight	0.030018 oz

For more information, please refer to datasheet

Documents

AMC1200SDUB Datasheet

More Information

The AMC1200 and AMC1200B are precision isolation amplifiers with an output separated from the input circuitry by a silicon dioxide (SiO2) barrier that is highly resistant to magnetic interference. This barrier has been certified to provide galvanic isolation of up to 4250 VPEAK (AMC1200B) or 4000 VPEAK (AMC1200) according to UL1577 and VDE V 0884-10. Used in conjunction with isolated power supplies, these devices prevent noise currents on a high common mode voltage line from entering the local ground and interfering with or damaging sensitive circuitry.
