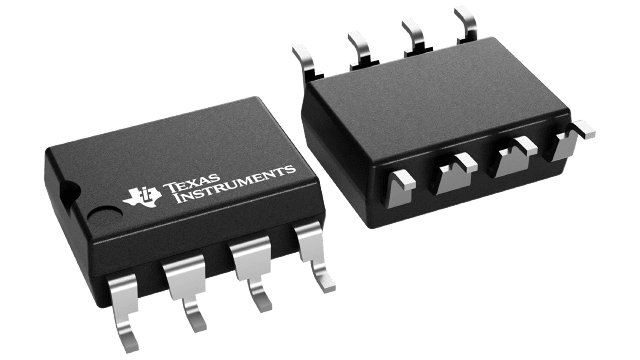

AMC1200STDUBRQ1 Texas Instruments - Yeehing Electronics
Automotive, ±250-mV input, precision current sensing basic isolated amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.8 |
| 100 — 249 | 3.098 |
| 250 — 999 | 2.435 |
| 1,000 + | 1.18 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Isolation Amplifiers |
| RoHS | Y |
| Series | AMC1200-Q1 |
| Number of Channels | 1 Channel |
| Isolation Voltage | 4000 Vrms |
| Isolation Type | Galvanic |
| GBP - Gain Bandwidth Product | - |
| 3 dB Bandwidth | 100 kHz |
| CMRR - Common Mode Rejection Ratio | 108 dB |
| Vos - Input Offset Voltage | 200 uV |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.7 V, 4.5 V |
| Operating Supply Current | 5.4 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Mounting Style | SMD/SMT |
| Package / Case | SOP-8 |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Amplifier Type | Isolation |
| Features | Typical 10 year lifespan at rated working voltage |
| Output Type | Differential |
| Product | Isolation Amplifiers |
| Type | Fully Differential Isolation Amplifier |
| Brand | Texas Instruments |
| Input Voltage Range - Max | +/- 320 mV |
| Shutdown | No Shutdown |
| Gain Error | 0.075 % |
| Gain V/V | 8 V/V |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 2.7 V to 5.5 V |
| Output Current per Channel | 20 mA |
| Pd - Power Dissipation | 44 mW |
| Product Type | Isolation Amplifiers |
| PSRR - Power Supply Rejection Ratio | 61 dB |
| SR - Slew Rate | - |
| Factory Pack Quantity | 350 |
| Subcategory | Amplifier ICs |
| Unit Weight | 0.030018 oz |
For more information, please refer to datasheet
Documents
| AMC1200STDUBRQ1 Datasheet |
More Information
The AMC1200-Q1 is a precision isolation amplifier with the output separated from the input circuitry by a silicon dioxide (SiO2) barrier that is highly resistant to magnetic interference. This barrier is certified to provide galvanic isolation of up to 4250 VPEAK according to UL1577 and VDE V 0884-10. Used in conjunction with isolated power supplies, this device prevents noise currents on a high common-mode voltage line from entering the local ground and interfering with or damaging sensitive circuitry.
