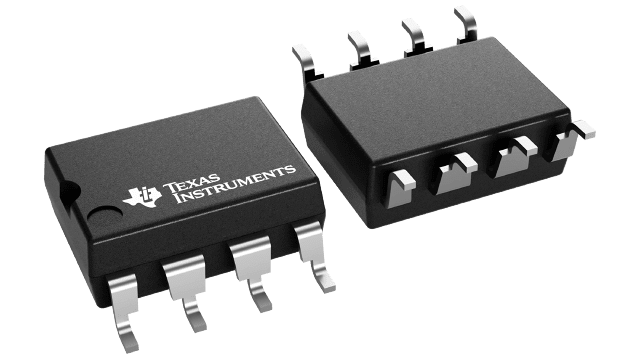

AMC1203BDUBR


YeeHing #: Y008-AMC1203BDUBR
Inventory: 4800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

AMC1203BDUBR Texas Instruments - Yeehing Electronics

±250-mV input, precision current sensing basic isolated modulator with int clock

Pricing (USD)

Quantity Unit Price
1 — 99 4.6
100 — 249 3.75
250 — 999 2.948
1,000 + 2.00

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Minimum Operating Temperature -40
Maximum Operating Temperature 105
Factory Pack Quantity 350
Package | Pins SOP (DUB) | 8

For more information, please refer to datasheet

Documents

AMC1203BDUBR Datasheet

More Information

The AMC1203 is a 1-bit, 10MHz, isolated delta-sigma (ΔΣ) modulator with an output buffer separated from the input interface circuitry by a silicon dioxide (SiO2) isolation barrier. This barrier provides galvanic isolation of up to 4000VPEAK. Used in conjunction with isolated power supplies, these devices prevent noise currents on a data bus or other circuits from entering the local ground and interfering with or damaging sensitive circuitry.
