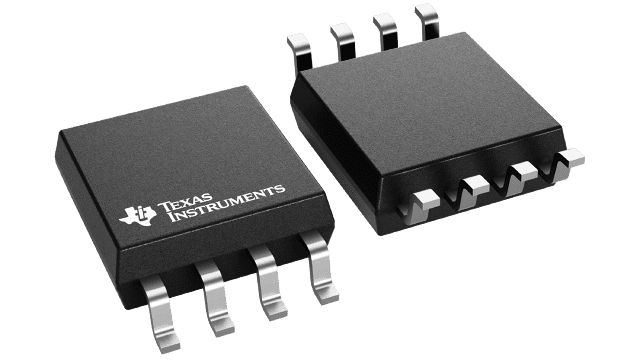

AMC1203PSA Texas Instruments - Yeehing Electronics

±250-mV input, precision current sensing basic isolated modulator with int clock

Pricing (USD)

Quantity	Unit Price
1 — 99	5.52
100 — 249	4.5
250 — 999	3.537
1,000 +	2.10

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog to Digital Converters - ADC
RoHS	Y
Series	AMC1203
Mounting Style	SMD/SMT
Package / Case	SOP-8
Resolution	16 bit
Number of Channels	1 Channel
Sampling Rate	40 kS/s
Input Type	Differential
Interface Type	Serial
Architecture	Sigma-Delta
Analog Supply Voltage	4.5 V to 5.5 V
Digital Supply Voltage	4.5 V to 5.5 V
SNR - Signal to Noise Ratio	85 dB
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Packaging	Tube
Number of Converters	1 Converter
Power Consumption	80 mW
Brand	Texas Instruments
Development Kit	AMC1203EVM
INL - Integral Nonlinearity	6 LSB
Moisture Sensitive	Yes
Number of ADC Inputs	1 Input
Operating Supply Voltage	4.5 V to 5.5 V
Pd - Power Dissipation	110 mW
Product Type	ADCs - Analog to Digital Converters
Reference Voltage	2.5 V
SFDR - Spurious Free Dynamic Range	95 dB
SINAD - Signal to Noise and Distortion Ratio	85 dB
Factory Pack Quantity	95
Subcategory	Data Converter ICs
Unit Weight	0.030018 oz

For more information, please refer to datasheet

Documents

AMC1203PSA Datasheet

More Information

The AMC1203 is a 1-bit, 10MHz, isolated delta-sigma (ΔΣ) modulator with an output buffer separated from the input interface circuitry by a silicon dioxide (SiO2) isolation barrier. This barrier provides galvanic isolation of up to 4000VPEAK. Used in conjunction with isolated power supplies, these devices prevent noise currents on a data bus or other circuits from entering the local ground and interfering with or damaging sensitive circuitry.
