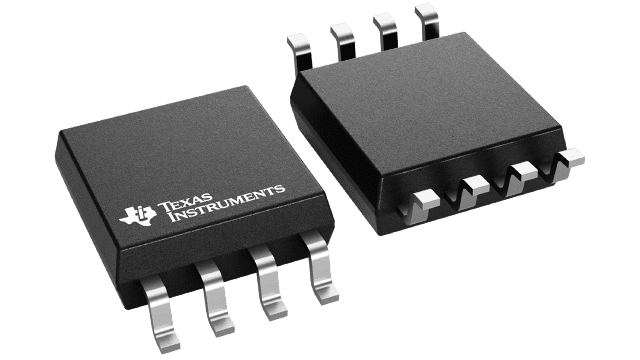

AMC1203PSAR Texas Instruments - Yeehing Electronics
±250-mV input, precision current sensing basic isolated modulator with int clock
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 4.6 |
100 — 249 | 3.75 |
250 — 999 | 2.948 |
1,000 + | 1.75 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Analog to Digital Converters - ADC |
RoHS | Y |
Series | AMC1203 |
Mounting Style | SMD/SMT |
Package / Case | SOP-8 |
Resolution | 16 bit |
Number of Channels | 1 Channel |
Sampling Rate | 40 kS/s |
Interface Type | Serial |
Architecture | Sigma-Delta |
Analog Supply Voltage | 4.5 V to 5.5 V |
Digital Supply Voltage | 4.5 V to 5.5 V |
SNR - Signal to Noise Ratio | 85 dB |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 105 C |
Packaging | Reel |
Power Consumption | 80 mW |
Brand | Texas Instruments |
Development Kit | AMC1203EVM |
INL - Integral Nonlinearity | 6 LSB |
Moisture Sensitive | Yes |
Number of ADC Inputs | 1 Input |
Operating Supply Voltage | 4.5 V to 5.5 V |
Product Type | ADCs - Analog to Digital Converters |
SFDR - Spurious Free Dynamic Range | 95 dB |
SINAD - Signal to Noise and Distortion Ratio | 85 dB |
Factory Pack Quantity | 2000 |
Subcategory | Data Converter ICs |
Unit Weight | 0.030018 oz |
For more information, please refer to datasheet
Documents
AMC1203PSAR Datasheet |
More Information
The AMC1203 is a 1-bit, 10MHz, isolated delta-sigma (ΔΣ) modulator with an output buffer separated from the input interface circuitry by a silicon dioxide (SiO2) isolation barrier. This barrier provides galvanic isolation of up to 4000VPEAK. Used in conjunction with isolated power supplies, these devices prevent noise currents on a data bus or other circuits from entering the local ground and interfering with or damaging sensitive circuitry.
