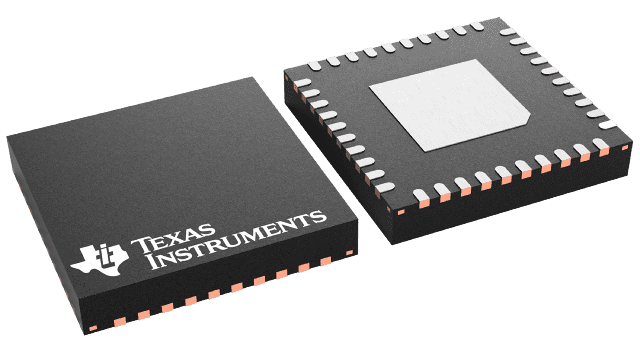

AMC1210IRHAT Texas Instruments - Yeehing Electronics

4-channel digital filter for delta-sigma modulators

Pricing (USD)

Quantity	Unit Price
1 — 99	2.909
100 — 249	2.549
250 — 999	1.787
1,000 +	1.01

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Data Acquisition ADCs/DACs - Specialized
RoHS	Y
Series	AMC1210
Number of Channels	4 Channel
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	VQFN-40
Packaging	Reel
Power Consumption	24.5 mW
Brand	Texas Instruments
Analog Supply Voltage	4.5 V to 5.5 V
Digital Supply Voltage	5.5 V
Moisture Sensitive	Yes
Product Type	Data Acquisition ADCs/DACs - Specialized
Factory Pack Quantity	250
Subcategory	Data Converter ICs
Supply Voltage - Max	5 V
Supply Voltage - Min	2.7 V
Unit Weight	0.003668 oz

For more information, please refer to datasheet

Documents

AMC1210IRHAT Datasheet

More Information

The AMC1210 is a four-channel digital filter designed specifically for current measurement and resolver position decoding in motor control applications. Each input can receive an independent delta-sigma () modulator bit stream. The bit streams are processed by four individually-programmable digital decimation filters. The AMC1210 also offers a flexible interface and a comprehensive interrupt unit, allowing customized digital functionality and immediate digital threshold comparisons for over-current monitoring.
