Texas Instruments

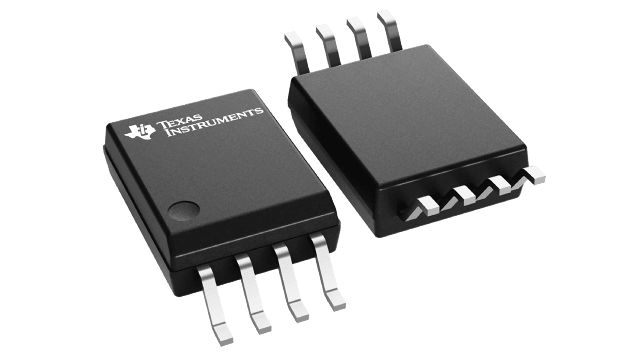

AMC1311BDWV
AMC1311BDWV
Regular price
$2.72 USD
Regular price
Sale price
$2.72 USD
Unit price
per
Couldn't load pickup availability
AMC1311BDWV Texas Instruments - Yeehing Electronics
2-V input, precision voltage sensing reinforced isolated amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.158 |
| 100 — 249 | 5.835 |
| 250 — 999 | 4.586 |
| 1,000 + | 2.72 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Isolation Amplifiers |
| RoHS | Y |
| Series | AMC1311 |
| Number of Channels | 1 Channel |
| Isolation Voltage | 5000 Vrms |
| Isolation Type | Galvanic |
| GBP - Gain Bandwidth Product | - |
| 3 dB Bandwidth | 275 kHz |
| Ib - Input Bias Current | 15 nA |
| Vos - Input Offset Voltage | 1.5 mV |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 3 V |
| Operating Supply Current | 7.1 mA |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | SOIC-8 |
| Packaging | Tube |
| Amplifier Type | Precision Isolated Amplifier |
| Product | Isolation Amplifiers |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Gain Error | 0.04 % |
| Moisture Sensitive | Yes |
| Output Current per Channel | 13 mA |
| Pd - Power Dissipation | 56.16 mW |
| Product Type | Isolation Amplifiers |
| PSRR - Power Supply Rejection Ratio | - 65 dB |
| Factory Pack Quantity | 64 |
| Subcategory | Amplifier ICs |
| Vcm - Common Mode Voltage | 1.44 V |
| Unit Weight | 0.011214 oz |
For more information, please refer to datasheet
Documents
| AMC1311BDWV Datasheet |
More Information
The AMC1311 is a precision, isolated amplifier with an output separated from the input circuitry by a capacitive isolation barrier that is highly resistant to magnetic interference. This barrier is certified to provide reinforced galvanic isolation of up to 5 kVRMS according to DIN EN IEC 60747-17 (VDE 0884-17) and UL1577 and supports a working voltage of up to 1500 VRMS.
