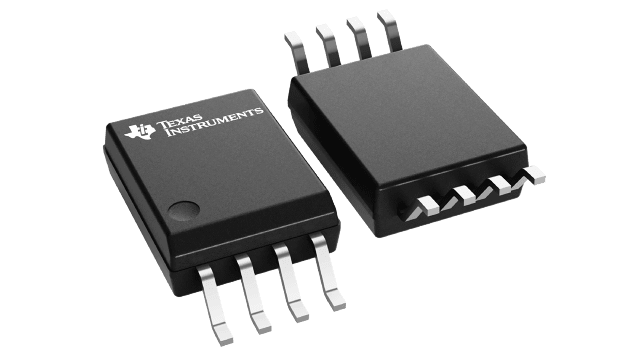

AMC1311DWV


YeeHing #: Y008-AMC1311DWV
Inventory: 7000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

AMC1311DWV Texas Instruments - Yeehing Electronics

2-V input, precision voltage sensing reinforced isolated amplifier

Pricing (USD)

Quantity Unit Price
1 — 99 4.858
100 — 249 3.96
250 — 999 3.113
1,000 + 2.11

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Isolation Amplifiers
RoHS Y
Series AMC1311
Number of Channels 1 Channel
Isolation Voltage 5000 Vrms
Isolation Type Galvanic
GBP - Gain Bandwidth Product -
3 dB Bandwidth 220 kHz
Ib - Input Bias Current 15 nA
Vos - Input Offset Voltage 9.9 mV
Supply Voltage - Max 5.5 V
Supply Voltage - Min 4.5 V
Operating Supply Current 7.1 mA
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Mounting Style SMD/SMT
Package / Case SOIC-8
Packaging Tube
Amplifier Type Precision Isolated Amplifier
Product Isolation Amplifiers
Brand Texas Instruments
Shutdown Shutdown
Gain Error 0.04 %
Moisture Sensitive Yes
Output Current per Channel 13 mA
Pd - Power Dissipation 97.9 mW
Product Type Isolation Amplifiers
PSRR - Power Supply Rejection Ratio - 65 dB
Factory Pack Quantity 64
Subcategory Amplifier ICs
Unit Weight 0.011214 oz

For more information, please refer to datasheet

Documents

AMC1311DWV Datasheet

More Information

The AMC1311 is a precision, isolated amplifier with an output separated from the input circuitry by a capacitive isolation barrier that is highly resistant to magnetic interference. This barrier is certified to provide reinforced galvanic isolation of up to 5 kVRMS according to DIN EN IEC 60747-17 (VDE 0884-17) and UL1577 and supports a working voltage of up to 1500 VRMS.
