Description

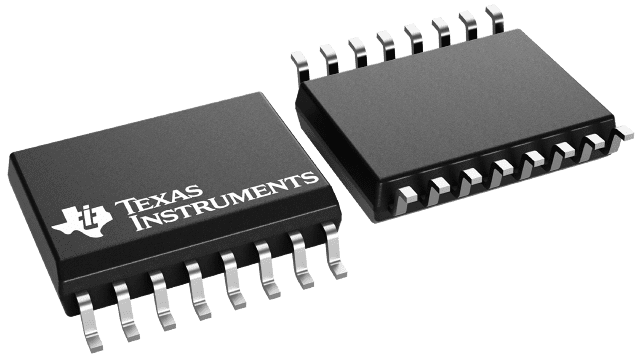

AMC3302DWER Texas Instruments - Yeehing Electronics
±50-mV input, precision current sensing reinforced isolated amplifier with integrated DC/DC
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 8.832 |
| 100 — 249 | 7.2 |
| 250 — 999 | 5.659 |
| 1,000 + | 3.36 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| AMC3302DWER Datasheet |
More Information
The AMC3302 is a precision, isolated amplifier optimized for shunt-based current measurements. The fully integrated, isolated DC/DC converter allows single-supply operation from the low-side of the device, which makes the device a unique solution for space-constrained applications. The reinforced capacitive isolation barrier is certified according to VDE V 0884-11 and UL1577 and supports a working voltage of up to 1.2 kVRMS.
