Texas Instruments

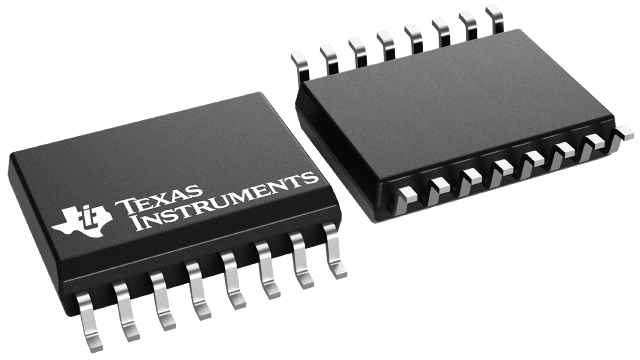

AMC3302QDWERQ1
AMC3302QDWERQ1
Regular price
$3.96 USD
Regular price
Sale price
$3.96 USD
Unit price
per
Couldn't load pickup availability
AMC3302QDWERQ1 Texas Instruments - Yeehing Electronics
Automotive, ±50-mV input, precision current sensing reinforced isolated amplifier with int. DC/DC
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 9.402 |
| 100 — 249 | 8.213 |
| 250 — 999 | 6.332 |
| 1,000 + | 3.96 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| AMC3302QDWERQ1 Datasheet |
More Information
The AMC3302-Q1 is a precision, isolated amplifier optimized for shunt-based current measurements. The fully integrated, isolated DC/DC converter allows single-supply operation from the low-side of the device, which makes the device a unique solution for space-constrained applications. The reinforced capacitive isolation barrier is certified according to VDE V 0884-11 and UL1577 and supports a working voltage of up to 1.2 kVRMS.
