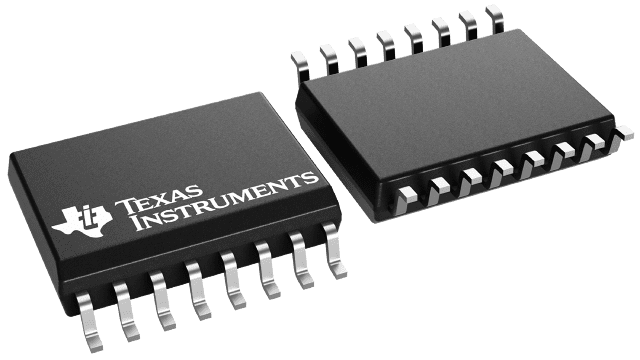

AMC3306M05DWER

Name: AMC3306M05DWER
Brand: Texas Instruments
Price: 3.68 USD
Availability: InStock

Texas Instruments

YeeHing #: Y008-AMC3306M05DWER

Inventory: 8000

Variant

Quantity:

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Share this product

AMC3306M05DWER Texas Instruments - Yeehing Electronics

±50-mV input, precision current sensing reinforced isolated modulator with integrated DC/DC

Pricing (USD)

Quantity	Unit Price
1 — 99	8.464
100 — 249	6.9
250 — 999	5.423
1,000 +	3.68

The above prices are for reference only.

Specifications

None

For more information, please refer to datasheet

Documents

AMC3306M05DWER Datasheet

More Information

The AMC3306M05 is a precision, isolated delta-sigma (ΔΣ) modulator, optimized for shunt-based current measurements. The fully integrated, isolated DC/DC converter allows single-supply operation from the low-side of the device which makes the device a unique solution for space-constrained applications. The reinforced capacitive isolation barrier is certified according to VDE V 0884-11 and UL1577 and supports a working voltage of up to 1.2 kVRMS.
