Description

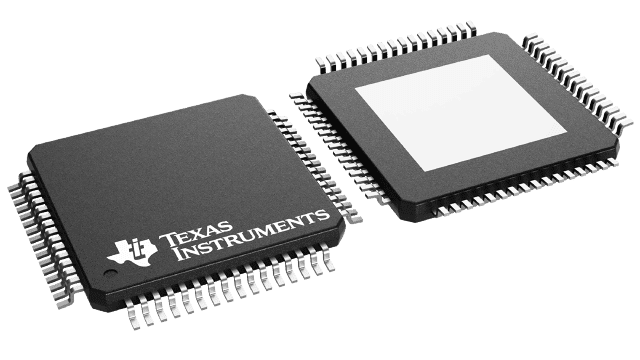

AMC7832IPAPR Texas Instruments - Yeehing Electronics
12-Bit High-Density Analog Monitor and Control (AMC) Solution
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 26.543 |
| 100 — 249 | 23.186 |
| 250 — 999 | 17.877 |
| 1,000 + | 11.19 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Data Acquisition ADCs/DACs - Specialized |
| RoHS | Y |
| Series | AMC7832 |
| Resolution | 12 bit |
| Number of Channels | 17 Channel |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-64 |
| Packaging | Reel |
| Features | Local Temp Sensor |
| Input Type | SAR |
| Input Voltage | - 12.5 V to + 12.5 V |
| Number of Converters | 12 Converter |
| Sampling Rate | 87 kS/s |
| Architecture | 13 Converter |
| Brand | Texas Instruments |
| Development Kit | AMC7832EVM |
| Moisture Sensitive | Yes |
| Number of ADC Channels | 1 ADC Channel |
| Number of DAC Channels | 12 DAC Channel |
| Product Type | Data Acquisition ADCs/DACs - Specialized |
| Factory Pack Quantity | 1000 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.017506 oz |
For more information, please refer to datasheet
Documents
More Information
The AMC7832 is a highly integrated, low-power, analog monitoring and control solution that includes a 17-channel, 12-bit analog-to-digital converter (ADC) with programmable alarms, twelve 12-bit digital-to-analog converters (DACs) with output ranges of either 0 to +5-V, 0 to +10-V or 10 to 0-V, eight GPIOs, internal reference and a local temperature sensor channel. The AMC7832 high level of integration significantly reduces component count and simplifies closed-loop system designs.
