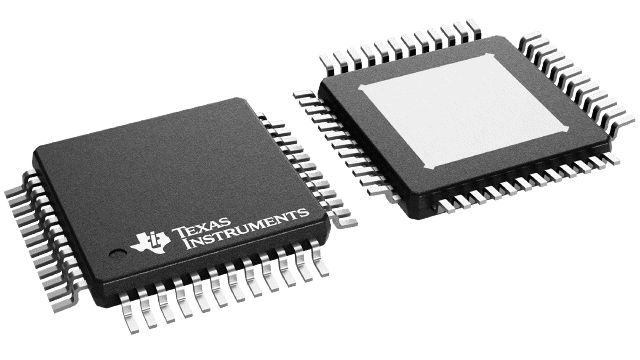

AMC7932PHPT Texas Instruments - Yeehing Electronics

32-channel 12-bit analog monitor and controller with multichannel ADC, bipolar DACs and temp sensor

Pricing (USD)

Quantity	Unit Price
1 — 99	53.535
100 — 249	47.586
250 — 999	39.119
1,000 +	24.49

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

AMC7932PHPT Datasheet

More Information

The AMC7932 is a highly integrated analog monitor and control device designed for high-density, general-purpose monitor and control systems. The AMC7932 includes 32 12-bit, digital-to-analog converters (DACs) with programmable output ranges. The device also incorporates a multiplexed, 12-bit analog-to-digital converter (ADC) with programmable threshold detectors, a temperature sensor, and an internal reference. The AMC7932 high level of integration significantly reduces component count and simplifies closed-loop system designs, thus making it a great choice for high-density applications where board space is critical.
