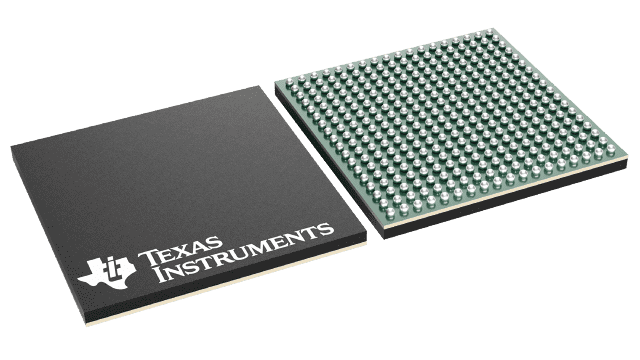

AMIC110BZCZA Texas Instruments - Yeehing Electronics

Sitara processor: Arm Cortex-A8, 10+ Ethernet protocols

Pricing (USD)

Quantity	Unit Price
1 — 99	7.304
100 — 249	6.38
250 — 999	4.919
1,000 +	3.08

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Microprocessors - MPU
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	NFBGA-324
Series	AMIC110
Core	ARM Cortex A8
Number of Cores	1 Core
Data Bus Width	32 bit
Maximum Clock Frequency	300 MHz
L1 Cache Instruction Memory	32 kB
L1 Cache Data Memory	32 kB
Operating Supply Voltage	1.1 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Packaging	Tray
Memory Type	L1/L2/L3 Cache, RAM, ROM
Brand	Texas Instruments
Data RAM Size	64 kB, 64 kB
Data ROM Size	176 kB
Interface Type	CAN, Ethernet, I2C, SPI, UART, USB
I/O Voltage	1.8 V, 3.3 V
L2 Cache Instruction / Data Memory	256 kB
Moisture Sensitive	Yes
Number of Timers/Counters	8 x 32 bit
Processor Series	Sitara
Factory Pack Quantity	126
Tradename	Sitara
Watchdog Timers	Watchdog Timer
Unit Weight	0.020565 oz

For more information, please refer to datasheet

Documents

AMIC110BZCZA Datasheet

More Information

The AMIC110 device is a multiprotocol programmable industrial communications processor providing ready-to-use solutions for most industrial Ethernet and fieldbus communications slaves, as well as some masters. The device is based on the ARM Cortex-A8 processor, peripherals, and industrial interface options. The devices support high-level operating systems (HLOS). Processor SDK Linux® and TI-RTOS are available free of charge from TI. Other RTOS are also offered by TI ecosystem partners. The AMIC110 microprocessor is an ideal companion communications chip to the C2000 family of microcontrollers for connected drives.
