Texas Instruments
AWR1642ABIGABLQ1
AWR1642ABIGABLQ1
Regular price
$13.58 USD
Regular price
Sale price
$13.58 USD
Unit price
per
Couldn't load pickup availability

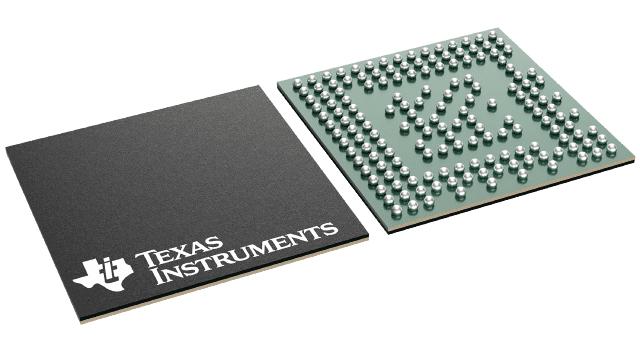

AWR1642ABIGABLQ1 Texas Instruments - Yeehing Electronics
Single-chip 76-GHz to 81-GHz automotive radar sensor integrating DSP and MCU
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 29.682 |
| 100 — 249 | 26.384 |
| 250 — 999 | 21.689 |
| 1,000 + | 13.58 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | RF System on a Chip - SoC |
| RoHS | Y |
| Type | Radar |
| Core | ARM Cortex R4F, C674x |
| Operating Frequency | 76 GHz to 81 GHz |
| Maximum Data Rate | 12.5 Mb/s |
| Output Power | 12.5 dBm |
| Operating Supply Voltage | 1.2 V, 1.3 V, 1.8 V, 3.3 V |
| Operating Temperature Range | - 40 C to + 125 C |
| Package / Case | FCBGA-161 |
| Qualification | AEC-Q100 |
| Packaging | Tray |
| Height | 1.17 mm |
| Length | 10.5 mm |
| Series | AWR1642 |
| Width | 10.5 mm |
| Brand | Texas Instruments |
| Data RAM Size | 1.5 MB |
| Data RAM Type | RAM |
| Interface Type | CAN, I2C, SPI, UART |
| Mounting Style | SMD/SMT |
| ADC Resolution | 10 bit |
| Data Bus Width | 32 bit |
| Maximum Clock Frequency | 40 MHz |
| Maximum Operating Temperature | + 125 C |
| Minimum Operating Temperature | - 40 C |
| Moisture Sensitive | Yes |
| Number of ADC Channels | 6 Channel |
| Product Type | RF System on a Chip - SoC |
| Factory Pack Quantity | 1 |
| Subcategory | Wireless & RF Integrated Circuits |
| Tradename | mmWave |
For more information, please refer to datasheet
Documents
| AWR1642ABIGABLQ1 Datasheet |
More Information
The AWR1642 device is an integrated single-chip FMCW radar sensor capable of operation in the 76- to 81-GHz band. The device is built with TI’s low-power 45-nm RFCMOS process and enables unprecedented levels of integration in an extremely small form factor. The AWR1642 is an ideal solution for low-power, self-monitored, ultra-accurate radar systems in the automotive space.
