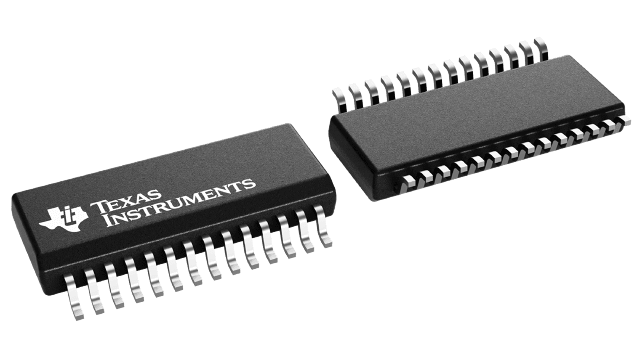

BQ2016DBQ


YeeHing #: Y012-BQ2016DBQ
Inventory: 8000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

BQ2016DBQ Texas Instruments - Yeehing Electronics

NiCd/NiMH gas gauge for high Discharge Rates (>5A), with pack Capacities (<5Ah)

Pricing (USD)

Quantity Unit Price
1 — 99 14.753
100 — 249 12.027
250 — 999 9.453
1,000 + 6.41

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Battery Management
RoHS Y
Product Fuel Gauges
Battery Type NiCd, NiMH
Operating Supply Voltage 3.3 V
Minimum Operating Temperature 0 C
Maximum Operating Temperature + 70 C
Package / Case SSOP-28
Packaging Tube
Capacity 1000 mAh to 4500 mAh
Height 1.5 mm
Length 10 mm
Series BQ2016
Type Gas Gauge
Width 4 mm
Brand Texas Instruments
Mounting Style SMD/SMT
Moisture Sensitive Yes
Product Type Battery Management
Factory Pack Quantity 40
Subcategory PMIC - Power Management ICs
Unit Weight 0.025045 oz

For more information, please refer to datasheet

Documents

BQ2016DBQ Datasheet

More Information

The bq2016 gas gauge IC for battery pack or in-system installation maintains an accurate record of available battery capacity. To integrate charge and discharge activity of the battery, the IC monitors a voltage drop across a sense resistor connected in series with the cells of the battery. The bq2016 compensates for battery temperature, charge/discharge rate, and battery self-discharge to the charge counter to provide available-capacity information across a wide range of operating conditions. The bq2016 works with NiCd or NiMH battery packs that have a capacity of 1 to 4.5 Ah and that are designed for high discharge rate applications such as power tools.
