Texas Instruments

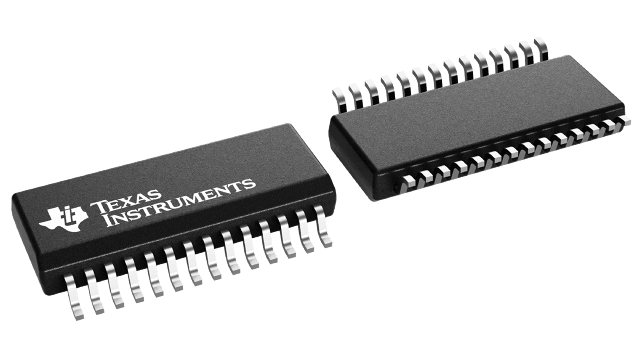

BQ2060A-E619DBQR
BQ2060A-E619DBQR
Couldn't load pickup availability
BQ2060A-E619DBQR Texas Instruments - Yeehing Electronics
Multi-chemistry SBS 1.1 compliant gas gauge with 5 LED drivers, Additional battery mgmt control
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 11.805 |
| 100 — 249 | 9.624 |
| 250 — 999 | 7.564 |
| 1,000 + | 4.49 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Battery Management |
| RoHS | Y |
| Battery Type | Lead Acid, Li-Ion, NiCd, NiMH |
| Output Voltage | 3.3 V |
| Operating Supply Voltage | 3.3 V |
| Minimum Operating Temperature | - 20 C |
| Maximum Operating Temperature | + 70 C |
| Package / Case | SSOP-28 |
| Packaging | Reel |
| Capacity | 800 mAh to 10000 mAh |
| Height | 1.5 mm |
| Length | 10 mm |
| Series | BQ2060A |
| Type | Gas Gauge |
| Width | 4 mm |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Moisture Sensitive | Yes |
| Product Type | Battery Management |
| Factory Pack Quantity | 2500 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.025045 oz |
For more information, please refer to datasheet
Documents
| BQ2060A-E619DBQR Datasheet |
More Information
The bq2060A SBS-compliant gas gauge IC for battery pack or in-system installation maintains an accurate record of available charge in rechargeable batteries. The bq2060A monitors capacity and other critical battery parameters for NiCd, NiMH, Li-ion, and lead-acid chemistries. The bq2060A uses a voltage-to-frequency converter with automatic offset error correction for charge and discharge counting. For voltage, temperature, and current reporting, the bq2060A uses an A-to-D converter. The onboard ADC also monitors individual cell voltages in a Li-ion battery pack and allows the bq2060A to generate control signals that may be used with a pack supervisor to enhance pack safety.
