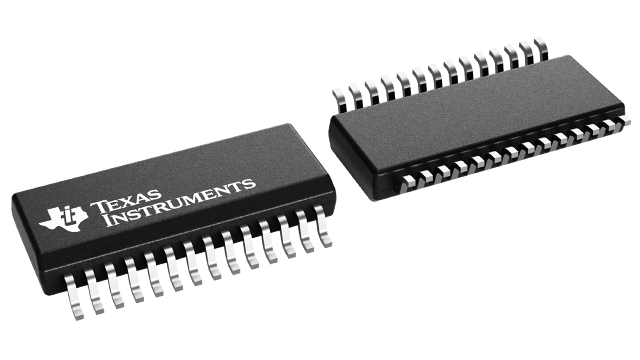

BQ2060SS-E207TR-EP Texas Instruments - Yeehing Electronics

Multi-chemistry SBS 1.1 compliant gas gauge with 5 LED drivers

Pricing (USD)

Quantity	Unit Price
1 — 99	15.734
100 — 249	12.827
250 — 999	10.082
1,000 +	5.99

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Battery Management
RoHS	Y
Battery Type	Lead Acid, Li-Ion, NiCd, NiMH
Output Voltage	0.4 V
Operating Supply Voltage	3.3 V
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 70 C
Package / Case	SSOP-28
Packaging	Reel
Height	1.5 mm
Length	10 mm
Series	BQ2060
Type	Gas Gauge
Width	4 mm
Brand	Texas Instruments
Mounting Style	SMD/SMT
Development Kit	EV2200
Moisture Sensitive	Yes
Product Type	Battery Management
Factory Pack Quantity	2500
Subcategory	PMIC - Power Management ICs
Unit Weight	0.025045 oz

For more information, please refer to datasheet

Documents

BQ2060SS-E207TR-EP Datasheet

More Information

The bq2060 SBS-compliant gas gauge IC for battery pack or in-system installation maintains an accurate record of available charge in rechargeable batteries. The bq2060 monitors capacity and other critical battery parameters for NiCd, NiMH, Li-ion, and lead-acid chemistries. The bq2060 uses a V-to-F converter with automatic offset error correction for charge and discharge counting. For voltage, temperature, and current reporting, the bq2060 uses an A-to-D converter. The onboard ADC also monitors individual cell voltages in a Li-ion battery pack and allows the bq2060 to generate control signals that may be used with a pack supervisor to enhance pack safety.
