Texas Instruments
BQ2063DBQ
BQ2063DBQ
Regular price
$7.21 USD
Regular price
Sale price
$7.21 USD
Unit price
per
Couldn't load pickup availability

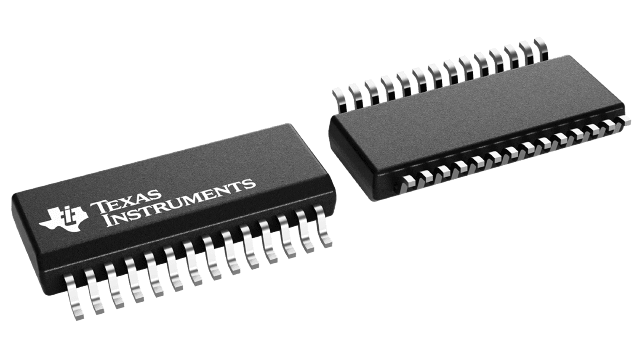

BQ2063DBQ Texas Instruments - Yeehing Electronics
Li-ion SBS 1.1 compliant gas gauge with protector interface
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 18.965 |
| 100 — 249 | 15.461 |
| 250 — 999 | 12.152 |
| 1,000 + | 7.21 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Battery Management |
| RoHS | Y |
| Battery Type | Li-Ion, Li-Polymer |
| Output Voltage | 3.3 V |
| Output Current | 1 uA |
| Operating Supply Voltage | 3.3 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Package / Case | SSOP-28 |
| Packaging | Tube |
| Capacity | 800 mAh to 10000 mAh |
| Height | 1.5 mm |
| Length | 10 mm |
| Series | BQ2063 |
| Type | Gas Gauge |
| Width | 4 mm |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Moisture Sensitive | Yes |
| Product Type | Battery Management |
| Factory Pack Quantity | 40 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.025045 oz |
For more information, please refer to datasheet
Documents
| BQ2063DBQ Datasheet |
More Information
The bq2063 SBS-compliant gas gauge IC for battery-pack or in-system installation maintains an accurate record of available charge in Li-Ion batteries. The bq2063 monitors capacity and other critical parameters in Li-Ion battery packs. It also directly interfaces the Seiko S-8243 protection IC to minimize component count in smart-battery circuits.
