Texas Instruments

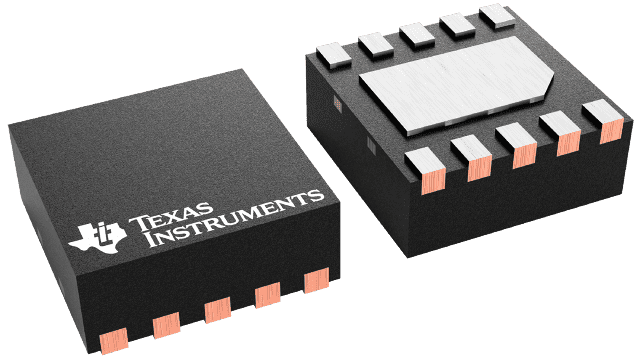

BQ24040DSQR
BQ24040DSQR
Regular price
$0.17 USD
Regular price
Sale price
$0.17 USD
Unit price
per
Couldn't load pickup availability
BQ24040DSQR Texas Instruments - Yeehing Electronics
Standalone 1-cell 1-A linear battery charger with 4.2-V VBAT and Temperature Sensing
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.618 |
| 100 — 249 | 0.475 |
| 250 — 999 | 0.35 |
| 1,000 + | 0.17 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Battery Management |
| RoHS | Y |
| Product | Charge Management |
| Battery Type | Li-Ion |
| Output Voltage | 4.2 V |
| Output Current | 800 mA |
| Operating Supply Voltage | 3.5 V to 28 V |
| Operating Supply Current | 0.8 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Package / Case | WSON-10 |
| Packaging | Reel |
| Series | BQ24040 |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Development Kit | BQ24040EVM |
| Moisture Sensitive | Yes |
| Pd - Power Dissipation | 1.66 W |
| Product Type | Battery Management |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000420 oz |
For more information, please refer to datasheet
Documents
| BQ24040DSQR Datasheet |
More Information
The BQ2404x series of devices are highly integrated Li-Ion and Li-Pol linear chargers devices targeted at space-limited portable applications. The devices operate from either a USB port or AC adapter. The high input voltage range with input overvoltage protection supports low-cost unregulated adapters.
