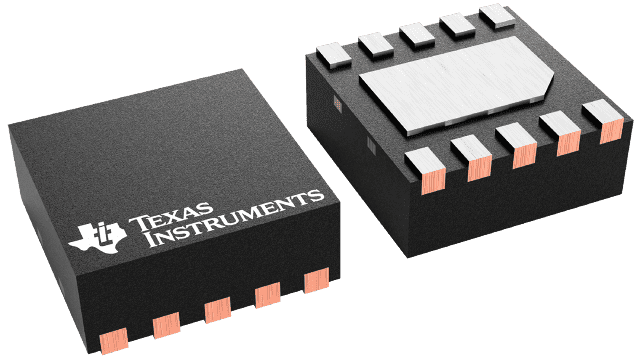

BQ24040DSQT Texas Instruments - Yeehing Electronics

Standalone 1-cell 1-A linear battery charger with 4.2-V VBAT and Temperature Sensing

Pricing (USD)

Quantity	Unit Price
1 — 99	1.05
100 — 249	0.808
250 — 999	0.595
1,000 +	0.24

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Battery Management
RoHS	Y
Battery Type	Li-Ion
Output Voltage	4.2 V
Output Current	800 mA
Operating Supply Voltage	3.5 V to 28 V
Operating Supply Current	1.25 A
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Package / Case	WSON-10
Packaging	Reel
Series	BQ24040
Brand	Texas Instruments
Mounting Style	SMD/SMT
Development Kit	BQ24040EVM
Moisture Sensitive	Yes
Product Type	Battery Management
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Unit Weight	0.000420 oz

For more information, please refer to datasheet

Documents

BQ24040DSQT Datasheet

More Information

The BQ2404x series of devices are highly integrated Li-Ion and Li-Pol linear chargers devices targeted at space-limited portable applications. The devices operate from either a USB port or AC adapter. The high input voltage range with input overvoltage protection supports low-cost unregulated adapters.
