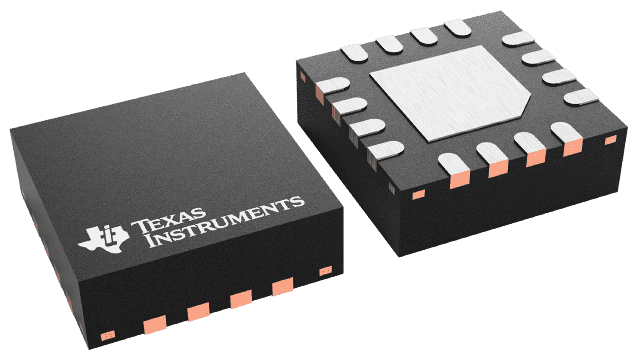

BQ24075RGTT Texas Instruments - Yeehing Electronics

Standalone 1-cell 1.5-A linear battery charger, Power Path, 4.2-V VBAT and 5.5-V VOUT

Pricing (USD)

Quantity	Unit Price
1 — 99	1.864
100 — 249	1.634
250 — 999	1.145
1,000 +	0.65

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

BQ24075RGTT Datasheet

More Information

The BQ2407x series of devices are integrated Li-Ion linear chargers and system power path management devices targeted at space-limited portable applications. The devices operate from either a USB port or an AC adapter and support charge currents up to 1.5 A. The input voltage range with input overvoltage protection supports unregulated adapters. The USB input current limit accuracy and start up sequence allow the BQ2407x to meet USB-IF inrush current specifications. Additionally, the input dynamic power management (VIN-DPM) prevents the charger from crashing incorrectly configured USB sources.
