Texas Instruments

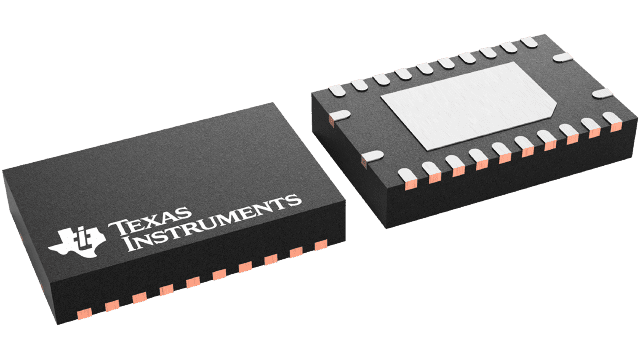

BQ24133RGYT
BQ24133RGYT
Regular price
$1.21 USD
Regular price
Sale price
$1.21 USD
Unit price
per
Couldn't load pickup availability
BQ24133RGYT Texas Instruments - Yeehing Electronics
Standalone 1-3 cell 2.5A synchronous Buck battery charger with external Power Path
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.478 |
| 100 — 249 | 3.048 |
| 250 — 999 | 2.137 |
| 1,000 + | 1.21 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Battery Management |
| RoHS | Y |
| Product | Battery Protection |
| Battery Type | Li-Ion, Li-Polymer |
| Output Voltage | Adjustable |
| Output Current | 2.5 A |
| Operating Supply Voltage | 4.5 V to 17 V |
| Operating Supply Current | 25 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Package / Case | VQFN-24 |
| Packaging | Reel |
| Series | BQ24133 |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Moisture Sensitive | Yes |
| Product Type | Battery Management |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.001926 oz |
For more information, please refer to datasheet
Documents
| BQ24133RGYT Datasheet |
More Information
The BQ24133 device is a highly integrated stand-alone Li-Ion and Li-Polymer switched-mode battery charger with two integrated N-channel power MOSFETs. The device offers a constant-frequency synchronous PWM controller with high accuracy regulation of input current, charge current, and voltage. The BQ24133 closely monitors the battery pack temperature to allow charge only in a preset temperature window. The BQ24133 charges one, two, or three cells (selected by CELL pin) at a fixed 4.2 V/cell.
