Texas Instruments
BQ24156AYFFR
BQ24156AYFFR
Regular price
$1.72 USD
Regular price
Sale price
$1.72 USD
Unit price
per
Couldn't load pickup availability
BQ24156AYFFR Texas Instruments - Yeehing Electronics
I2C 1cell 1.55A Buck battery charger
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.508 |
| 100 — 249 | 3.675 |
| 250 — 999 | 2.889 |
| 1,000 + | 1.72 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Battery Management |
| RoHS | Y |
| Battery Type | Li-Ion, Li-Polymer |
| Output Voltage | 4.2 V |
| Output Current | 1.5 A |
| Operating Supply Voltage | 4 V to 9 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |

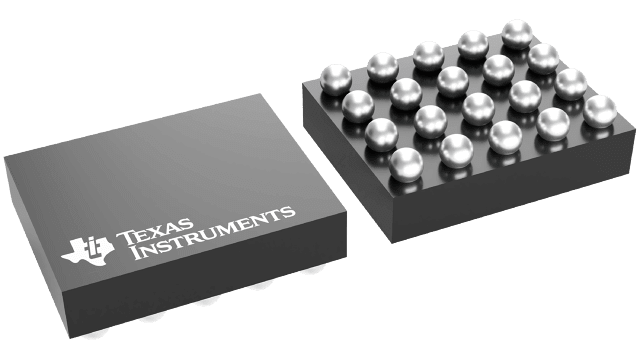

| Package / Case | DSBGA-20 |
| Packaging | Reel |
| Series | BQ24156A |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Product Type | Battery Management |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Part # Aliases | HPA01077AYFFR |
For more information, please refer to datasheet
Documents
| BQ24156AYFFR Datasheet |
More Information
The bq24153A/6A/8/9 is a compact, flexible, high-efficiency, USB-friendly switch-mode charge management device for single-cell Li-ion and Li-polymer batteries used in a wide range of portable applications. The charge parameters can be programmed through an I2C interface. The IC integrates a synchronous PWM controller, power MOSFETs, input current sensing, high-accuracy current and voltage regulation, and charge termination, into a small WCSP package.
