BQ24158YFFR


YeeHing #: Y012-BQ24158YFFR
Inventory: 2400

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

BQ24158YFFR Texas Instruments - Yeehing Electronics

I2C 1cell 1.25A Buck battery charger with OTG and no battery detection at power up

Pricing (USD)

Quantity Unit Price
1 — 99 1.277
100 — 249 1.055
250 — 999 0.758
1,000 + 0.38

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Minimum Operating Temperature -40
Maximum Operating Temperature 85
Factory Pack Quantity 3,000

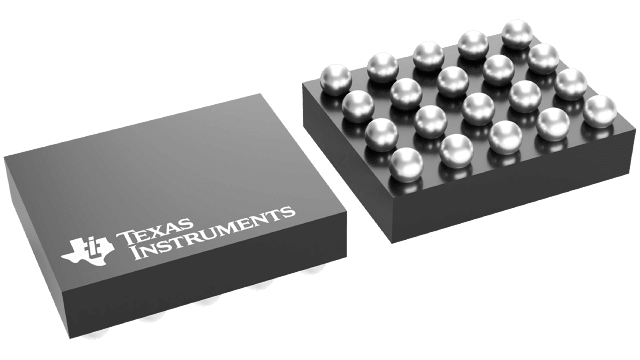

Package | Pins DSBGA (YFF) | 20

For more information, please refer to datasheet

Documents

BQ24158YFFR Datasheet

More Information

The bq24153A/6A/8/9 is a compact, flexible, high-efficiency, USB-friendly switch-mode charge management device for single-cell Li-ion and Li-polymer batteries used in a wide range of portable applications. The charge parameters can be programmed through an I2C interface. The IC integrates a synchronous PWM controller, power MOSFETs, input current sensing, high-accuracy current and voltage regulation, and charge termination, into a small WCSP package.
