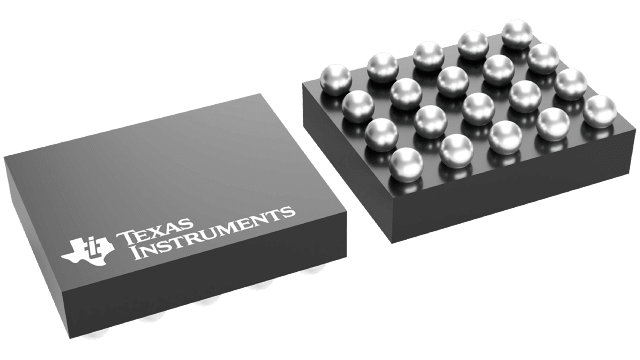

BQ24158YFFT


YeeHing #: Y012-BQ24158YFFT
Inventory: 7200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

BQ24158YFFT Texas Instruments - Yeehing Electronics

I2C 1cell 1.25A Buck battery charger with OTG and no battery detection at power up

Pricing (USD)

Quantity Unit Price
1 — 99 1.382
100 — 249 1.211
250 — 999 0.849
1,000 + 0.48

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Battery Management
RoHS Y
Product Charge Management
Battery Type Li-Ion, Li-Polymer
Output Voltage 7 V
Output Current 1.25 A
Operating Supply Voltage 4 V to 6 V
Operating Supply Current 5 mA
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Package / Case DSBGA-20
Packaging Reel
Series BQ24158
Brand Texas Instruments
Mounting Style SMD/SMT
Product Type Battery Management
Factory Pack Quantity 250
Subcategory PMIC - Power Management ICs
Unit Weight 0.000169 oz

For more information, please refer to datasheet

Documents

BQ24158YFFT Datasheet

More Information

The bq24153A/6A/8/9 is a compact, flexible, high-efficiency, USB-friendly switch-mode charge management device for single-cell Li-ion and Li-polymer batteries used in a wide range of portable applications. The charge parameters can be programmed through an I2C interface. The IC integrates a synchronous PWM controller, power MOSFETs, input current sensing, high-accuracy current and voltage regulation, and charge termination, into a small WCSP package.
