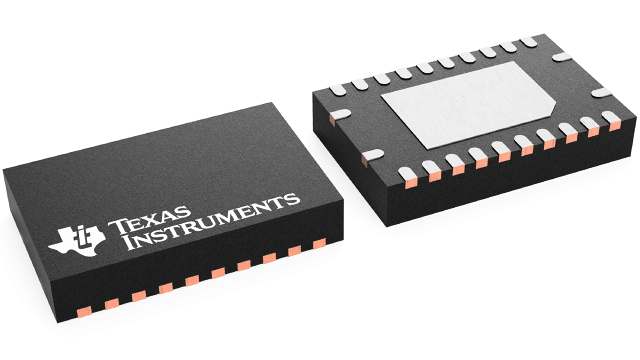

BQ24171RGYT


YeeHing #: Y012-BQ24171RGYT
Inventory: 5000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

BQ24171RGYT Texas Instruments - Yeehing Electronics

Standalone 1-3 cell 4A synchronous Buck battery charger with JEITA compliance and Power Path

Pricing (USD)

Quantity Unit Price
1 — 99 3.82
100 — 249 3.114
250 — 999 2.448
1,000 + 1.66

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Battery Management
RoHS Y
Product Charge Management
Battery Type Li-Ion, Li-Polymer
Output Voltage Adjustable
Output Current 4 A
Operating Supply Voltage 4.5 V to 17 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Package / Case VQFN-24
Packaging Reel
Series BQ24171
Brand Texas Instruments
Mounting Style SMD/SMT
Development Kit BQ24171EVM-706-15V
Moisture Sensitive Yes
Product Type Battery Management
Factory Pack Quantity 250
Subcategory PMIC - Power Management ICs
Unit Weight 0.001926 oz

For more information, please refer to datasheet

Documents

BQ24171RGYT Datasheet

More Information

The bq24171 device is highly integrated stand-alone Li-ion and Li-polymer switched-mode battery charger with two integrated N-channel power MOSFETs. The device offers a constant-frequency synchronous PWM controller with high-accuracy regulation of input current, charge current, and voltage. The bq24171 closely monitors the battery pack temperature and allows charge only in a JEITA profile-compatible window with a lower charge rate at a low temperature and a lower charge voltage at a high temperature. The bq24171 device charges the battery in three phases: preconditioning, constant current, and constant voltage. The bq24171 charges up to 3-series cells with an adjustable cell voltage.
