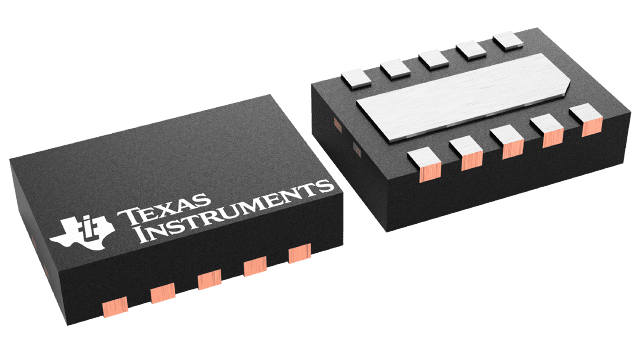

BQ24210DQCT Texas Instruments - Yeehing Electronics

800mA, single-input, single cell Li-ion Solar battery charger

Pricing (USD)

Quantity	Unit Price
1 — 99	2.462
100 — 249	2.158
250 — 999	1.513
1,000 +	0.85

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Battery Management
RoHS	Y
Product	Charge Management
Battery Type	Li-Ion, Li-Polymer
Output Voltage	4.2 V
Output Current	800 mA
Operating Supply Voltage	3.5 V to 18 V
Operating Supply Current	0.8 A
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Package / Case	WSON-10
Packaging	Reel
Operating Temperature Range	- 40 C to + 85 C
Series	BQ24210
Brand	Texas Instruments
Mounting Style	SMD/SMT
Development Kit	BQ24210EVM-678
Moisture Sensitive	Yes
Product Type	Battery Management
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Unit Weight	0.000529 oz

For more information, please refer to datasheet

Documents

BQ24210DQCT Datasheet

More Information

The bq24210 device is a highly integrated Li-Ion linear charger targeted at space-limited portable applications. The battery is charged in three phases: conditioning, constant current and constant voltage with an IC thermal protection and safety timer. The charge current value is programmable through an external resistor.The high input voltage range with input overvoltage protection supports low-cost unregulated adapters. The input voltage regulation loop with programmable input voltage regulation threshold make it suitable for charging from alternative power sources, such as solar panel or inductive charging pad. Furthermore, when no input source is present, the IC has a load mode to power peripherals by connecting the battery to the VBUS. Load mode has current limiting function to prevent overload.
