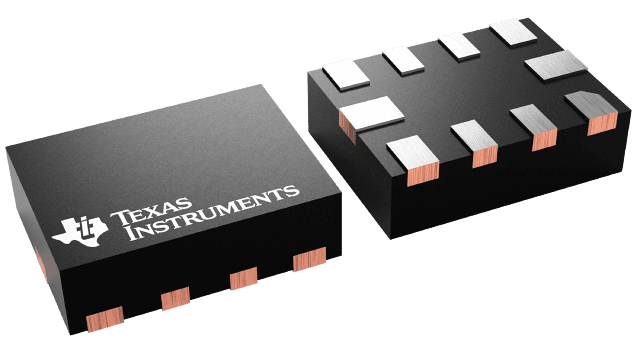

BQ24392QRSERQ1 Texas Instruments - Yeehing Electronics

Automotive Charger Detection Device supporting BCDv1.2 with Integrated USB2.0 Switch

Pricing (USD)

Quantity	Unit Price
1 — 99	1.21
100 — 249	0.999
250 — 999	0.718
1,000 +	0.38

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	USB Switch ICs
RoHS	Y
Product	USB 2.0 Switches
Configuration	2 x SPST
On Resistance - Max	8 Ohms
On Time - Max	-
Off Time - Max	-
Operating Supply Voltage	5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	UQFN-10
Qualification	AEC-Q100
Packaging	Reel
Bandwidth	1 GHz
Series	BQ24392-Q1
Brand	Texas Instruments
Moisture Sensitive	Yes
Number of Switches	2 Switch
Product Type	USB Switch ICs
Factory Pack Quantity	3000
Subcategory	Switch ICs
Supply Voltage - Max	5.25 V
Supply Voltage - Min	4.75 V
Unit Weight	0.000353 oz

For more information, please refer to datasheet

Documents

BQ24392QRSERQ1 Datasheet

More Information

The BQ24392-Q1 is a dual single-pole single-throw (SPST) USB 2.0 high-speed isolation switch with charger detection capabilities for use with micro and mini-USB ports. This USB switch allows mobile phones, tablets, and other battery operated electronics to be charged from different adapters with minimal system software. The device’s charger detection circuitry can support USB Battery Charging Specification version 1.2 (BCv1.2) compliant, Apple™, TomTom™, and other non-standard chargers.
