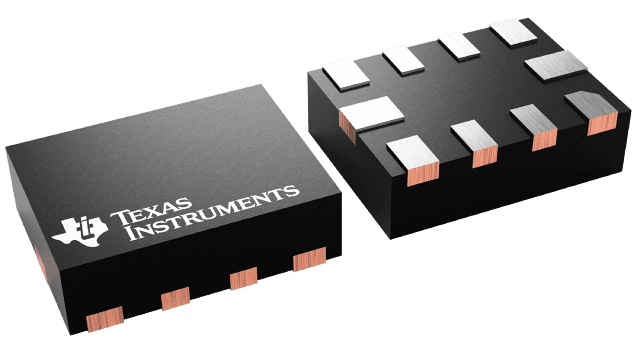

BQ24392RSER Texas Instruments - Yeehing Electronics

SPST USB 2.0 High-Speed Switch With Battery Charging Detection

Pricing (USD)

Quantity	Unit Price
1 — 99	0.551
100 — 249	0.424
250 — 999	0.312
1,000 +	0.16

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	USB Switch ICs
RoHS	Y
Product	USB 2.0 Switches
Configuration	2 x SPST
On Resistance - Max	8 Ohms
On Time - Max	-
Off Time - Max	-
Operating Supply Voltage	5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	UQFN-10
Packaging	Reel
Bandwidth	920 MHz
Series	BQ24392
Brand	Texas Instruments
Number of Switches	2 Switch
Product Type	USB Switch ICs
Factory Pack Quantity	3000
Subcategory	Switch ICs
Supply Voltage - Max	5.25 V
Supply Voltage - Min	4.75 V
Unit Weight	0.000353 oz

For more information, please refer to datasheet

Documents

BQ24392RSER Datasheet

More Information

The BQ24392 is a dual single-pole single-throw (SPST) USB 2.0 high-speed isolation switch with charger detection capabilities for use with micro and mini-USB ports. This USB switch allows mobile phones, tablets, and other battery operated electronics to be charged from different adapters with minimal system software. The device’s charger detection circuitry can support USB Battery Charging Specification version 1.2 (BCv1.2) compliant, Apple™, TomTom™, and other non-standard chargers.
