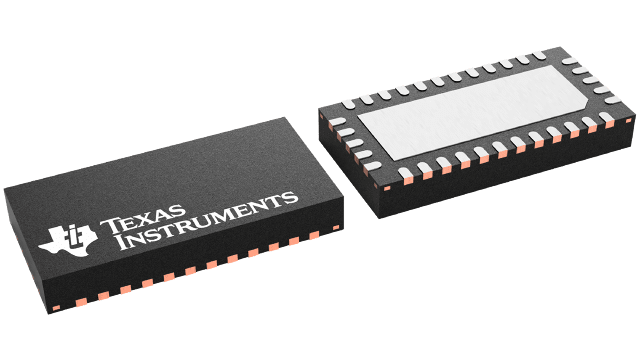

BQ24765RUVR Texas Instruments - Yeehing Electronics

SMBus 2-4 cell Buck battery charge controller with integrated FETs

Pricing (USD)

Quantity	Unit Price
1 — 99	5.61
100 — 249	4.574
250 — 999	3.595
1,000 +	2.13

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Battery Management
RoHS	Y
Battery Type	LiFePO4
Output Voltage	Adjustable
Output Current	4 A
Operating Supply Voltage	7 V to 24 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 155 C
Package / Case	VQFN-34
Packaging	Reel
Series	BQ24765
Brand	Texas Instruments
Development Kit	BQ24765EVM
Moisture Sensitive	Yes
Product Type	Battery Management
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

BQ24765RUVR Datasheet

More Information

The bq24765 is a high-efficiency, synchronous battery charger with two integrated 30-mΩ NMOS power MOSFETs, and an integrated input current comparator, offering low component count for space-constraint, multi-chemistry battery charging applications. Input current, charge current, and charge voltage DACs allow for very high regulation accuracies that can be easily programmed by the system power management micro-controller using SMBus. The bq24765 has switching frequency of 700 kHz. The bq24765 charges 2, 3, or 4 series Li+ cells, and is available in a 34-pin, 3.50 mm × 7.00 mm VQFN package.
