Texas Instruments

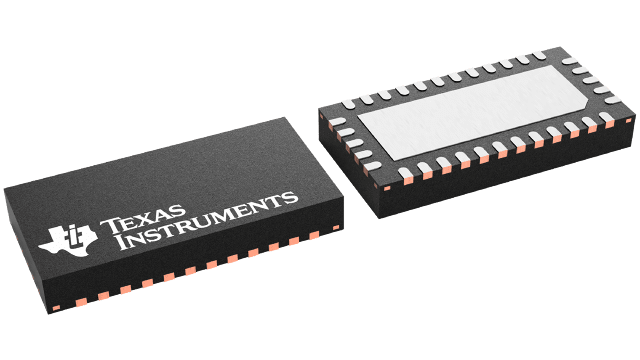

BQ24765RUVT
BQ24765RUVT
Regular price
$2.56 USD
Regular price
Sale price
$2.56 USD
Unit price
per
Couldn't load pickup availability
BQ24765RUVT Texas Instruments - Yeehing Electronics
SMBus 2-4 cell Buck battery charge controller with integrated FETs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 6.733 |
| 100 — 249 | 5.489 |
| 250 — 999 | 4.314 |
| 1,000 + | 2.56 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Battery Management |
| RoHS | Y |
| Product | Charge Management |
| Battery Type | LiFePO4 |
| Output Voltage | Adjustable |
| Output Current | 4 A |
| Operating Supply Voltage | 7 V to 24 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 155 C |
| Package / Case | VQFN-34 |
| Packaging | Reel |
| Series | BQ24765 |
| Type | SMBus-Controlled Multi-Chemistry Battery Charger with Integrated Power MOSFETs |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Development Kit | BQ24765EVM |
| Moisture Sensitive | Yes |
| Product Type | Battery Management |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.002385 oz |
For more information, please refer to datasheet
Documents
| BQ24765RUVT Datasheet |
More Information
The bq24765 is a high-efficiency, synchronous battery charger with two integrated 30-mΩ NMOS power MOSFETs, and an integrated input current comparator, offering low component count for space-constraint, multi-chemistry battery charging applications. Input current, charge current, and charge voltage DACs allow for very high regulation accuracies that can be easily programmed by the system power management micro-controller using SMBus. The bq24765 has switching frequency of 700 kHz. The bq24765 charges 2, 3, or 4 series Li+ cells, and is available in a 34-pin, 3.50 mm × 7.00 mm VQFN package.
