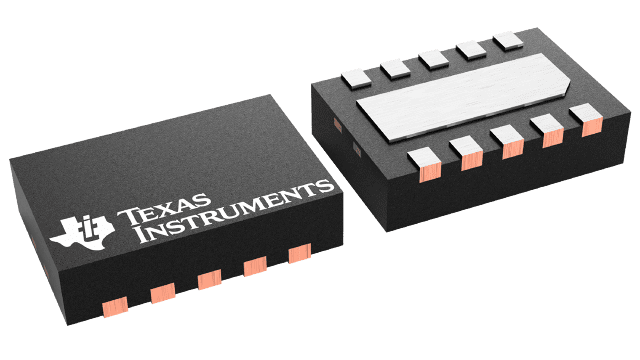

BQ25060DQCT Texas Instruments - Yeehing Electronics

1-cell, 1-A, Li-ion battery charger with 50-mA LDO

Pricing (USD)

Quantity	Unit Price
1 — 99	1.51
100 — 249	1.247
250 — 999	0.896
1,000 +	0.47

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Battery Management
RoHS	Y
Battery Type	Li-Ion
Output Voltage	4.2 V
Output Current	1 A
Operating Supply Voltage	4.4 V to 30 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Package / Case	WSON-10
Packaging	Reel
Series	BQ25060
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Battery Management
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Unit Weight	0.000526 oz

For more information, please refer to datasheet

Documents

BQ25060DQCT Datasheet

More Information

The bq25060 is a highly integrated Li-Ion linear battery charger targeted at space-limited portable applications. It operates from either a USB port or AC Adapter and charges a single-cell Li-Ion battery with up to 1A of charge current. The 30V input voltage range with input over-voltage protections supports low-cost unregulated adapters.
